Tektronix P5150
High Voltage Probe, 500 MHz 50X, 2500V
500 MHz Bandwidth
10X / 100X (switchable) Attenuation Ratio
10 MΩ (10X) / 100 MΩ (100X) Input Resistance
9.5 pF (10X) / 1.5 pF (100X) Input Capacitance
300 V RMS CAT II (10X) / 1000 V RMS CAT II (100X) Maximum Input Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Attenuation Ratio | 10X / 100X (switchable) |
| Input Resistance | 10 MΩ (10X) / 100 MΩ (100X) |
| Input Capacitance | 9.5 pF (10X) / 1.5 pF (100X) |
| Maximum Input Voltage | 300 V RMS CAT II (10X) / 1000 V RMS CAT II (100X) |
| Cable Length | 1.3 m (4.3 ft) |
| Rise Time | 700 ps (10X) / 700 ps (100X) |
| Compensation Range | 10 pF to 35 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TekProbe BNC interface or standard BNC input |
| Connector Type | BNC |
Tektronix P5150 Options:
- P5150 - 013-0291-xx - Probe Tip to BNC Adapter (Recommended Accessory)
- P5150 - 206-0060-xx - 0.080 in. diameter Spring Tip (Recommended Accessory)
- P5150 - C3 - Calibration Service 3 Years
- P5150 - C5 - Calibration Service 5 Years
- P5150 - D1 - Calibration Data Report
- P5150 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P5150 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P5150 - R3 - Repair Service 3 Years (including warranty)
- P5150 - R5 - Repair Service 5 Years (including warranty)
| Model | P5150 |
|---|

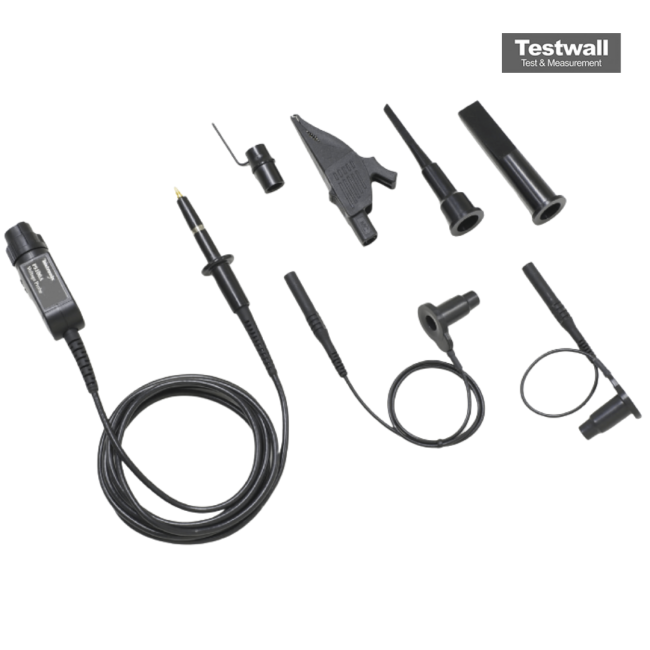

The Tektronix P5150 is a 500 MHz, 50X high-voltage probe rated for 2500 V peak and 1000 V RMS CAT II, designed for safe, isolated measurements in elevated or floating systems. It is ideal for ripple analysis on high-voltage DC supplies and is floatable up to 600 V RMS CAT II or 300 V RMS CAT III.
Optimized for TPS2000 and THS3000 Series oscilloscopes, it ensures safe, accurate testing in power electronics and high-voltage systems.
Testwall can supply the used Tektronix P5150, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5150.
