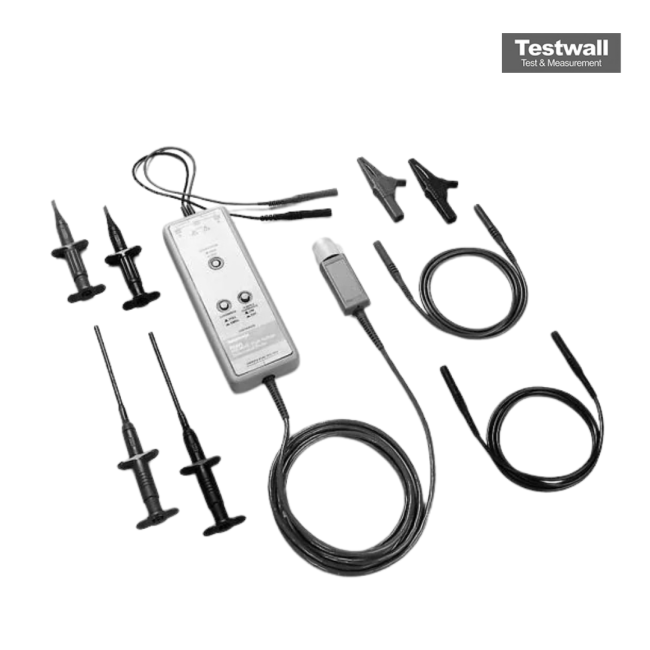

Tektronix P5205
High Voltage Differential Probe, 100 MHz
100 MHz Bandwidth
±1300 V (DC + Peak AC) Maximum Differential Voltage
±2600 V (DC + Peak AC) Maximum Common Mode Voltage
50X / 500X Attenuation Ratio
10 MΩ, 7 pF (each input to ground) Input Impedance
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Maximum Differential Voltage | ±1300 V (DC + Peak AC) |
| Maximum Common Mode Voltage | ±2600 V (DC + Peak AC) |
| Attenuation Ratio | 50X / 500X |
| Input Impedance | 10 MΩ, 7 pF (each input to ground) |
| CMRR (Common Mode Rejection Ratio) | 10,000:1 (80 dB) at DC; 1,000:1 (60 dB) at 60 Hz |
| Rise Time | 3.5 ns |
| Output Cable Length | 1.2 m (4 ft) |
| Operating Temperature | 0°C to +50°C |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TekProbe BNC interface |
Tektronix P5205 Options:
- P5205 - C3 - Calibration Service 3 Years
- P5205 - C5 - Calibration Service 5 Years
- P5205 - D1 - Calibration Data Report
- P5205 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P5205 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P5205 - R3 - Repair Service 3 Years (including warranty)
- P5205 - R5 - Repair Service 5 Years (including warranty)
- P5205 - SILV200 - Standard warranty extended to 5 years
| Model | P5205 |
|---|
The Tektronix P5205 is a 100 MHz active differential probe designed to safely measure signals up to ±1300 V in floating circuits. It supports 50X/500X attenuation and is powered via the TekProbe® interface, ideal for motor drives and power converters.
With 4 MΩ input resistance, 7 pF capacitance, and high CMRR (80 dB @ 60 Hz), the P5205 ensures precise signal fidelity in high-voltage applications.
Testwall can supply the used Tektronix P5205, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5205.
