Tektronix
Tektronix P5960
Logic Analyzer Probe
1.5 GHz Bandwidth
233 ps Rise Time
±15 V (DC + Peak AC) Input Voltage Range
10X Attenuation Ratio
10 MΩ in parallel with 9.5 pF Input Impedance
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Rise Time | 233 ps |
| Input Voltage Range | ±15 V (DC + Peak AC) |
| Attenuation Ratio | 10X |
| Input Impedance | 10 MΩ in parallel with 9.5 pF |
| Output Impedance | 50 Ω |
| Cable Length | 1.2 m (4 ft) |
| Maximum Input Voltage | 40 V CAT I |
| Compensation Range | 15 pF to 47 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with 50 Ω SMA input connectors |
Tektronix P5960 Options:
- P5960 - L0 - English manual
- P5960 - L99 - No manual
- P5960 - C3 - Calibration Service 3 Years
- P5960 - C5 - Calibration Service 5 Years
- P5960 - R3 - Repair Service 3 Years (including warranty)
- P5960 - R5 - Repair Service 5 Years (including warranty)
| Model | P5960 |
|---|

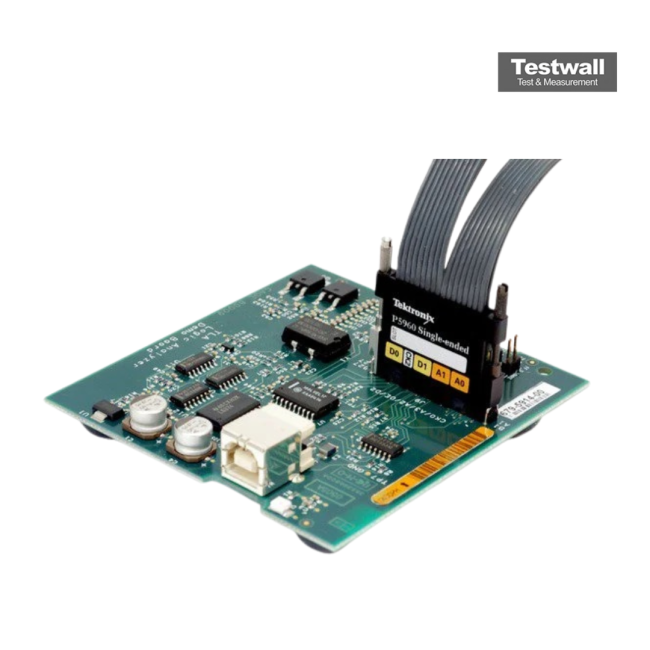

The Tektronix P5960 is a high-speed digital logic analyzer probe from the P5900 Series, offering 20 kΩ input resistance, 7.5 Vp-p dynamic range, and low capacitive loading for precise, non-intrusive signal acquisition across various electronic designs.
It supports versatile attachment options such as D-Max®, Mictor, square pins, and flying leads, and is ideal for validating and debugging embedded systems.
Testwall can supply the used Tektronix P5960, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5960.
