Tektronix

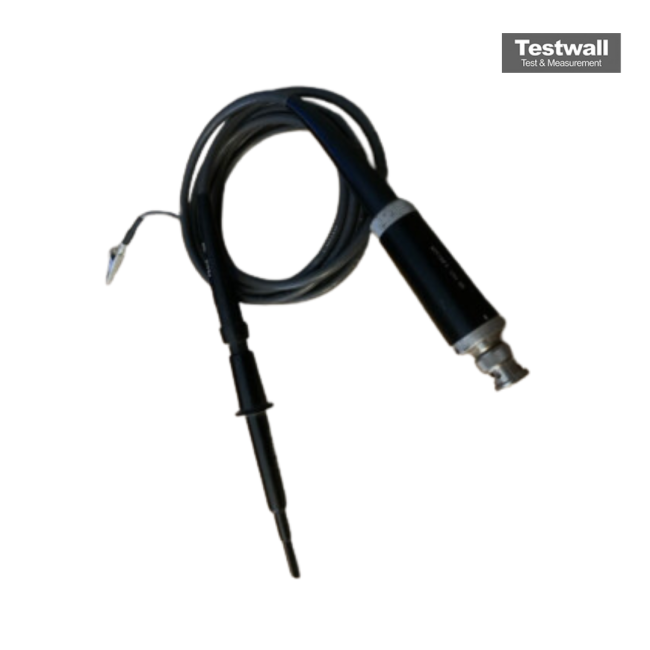

Tektronix P6010
60 MHz Bandwidth
Passive Voltage Probe Probe Type
10X Attenuation Ratio
10 MΩ Input Resistance
13 pF (typical) Input Capacitance
| Attribute | Value |
|---|---|
| Bandwidth | 60 MHz |
| Probe Type | Passive Voltage Probe |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13 pF (typical) |
| Maximum Input Voltage | 300 V RMS (CAT II) |
| Rise Time | 5.8 ns |
| Cable Length | 1.2 m (approx. 4 ft) |
| Compensation Range | 10 pF to 35 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connector |
| Model | P6010 |
|---|
The Tektronix P6010 is a 10× passive voltage probe offering 150 MHz bandwidth and ≤2 ns rise time for high-speed signal capture. It provides 10 MΩ input impedance and low capacitance (under 10‑14.5 pF), rated for 500 V DC + peak AC. Its compact design fits dense circuits perfectly.
Equipped with interchangeable cable lengths (3.5 ft/6 ft/9 ft) and adjustable compensation, the P6010 ensures flexible use with wide-band oscilloscopes.
Testwall can supply the used Tektronix P6010, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6010.
