Tektronix
Tektronix P6021A
AC Current Probe, 120 Hz to 60 MHz
120 MHz Bandwidth
100 mA/div to 10 A/div Current Range
1 mA/mV (10 A/div range), 10 mA/mV (100 mA/div range) Sensitivity
450 Hz to 120 MHz Frequency Range
±50 A (peak) Maximum Peak Current
| Attribute | Value |
|---|---|
| Bandwidth | 120 MHz |
| Current Range | 100 mA/div to 10 A/div |
| Sensitivity | 1 mA/mV (10 A/div range), 10 mA/mV (100 mA/div range) |
| Frequency Range | 450 Hz to 120 MHz |
| Maximum Peak Current | ±50 A (peak) |
| Conductor Size | Maximum conductor diameter of 5 mm |
| Output Connector | BNC |
| Cable Length | 1.5 m (approximately 5 ft) |
| Operating Temperature | 0°C to +50°C |
| Compatible Oscilloscopes | Compatible with Tektronix oscilloscopes featuring 50 Ω input termination |
Tektronix P6021A Options:
- P6021A - Opt. C3 - Calibration Service 3 Years
- P6021A - Opt. C5 - Calibration Service 5 Years
- P6021A - Opt. D1 - Calibration Data Report
- P6021A - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- P6021A - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- P6021A - Opt. R3 - Repair Service 3 Years (including warranty)
- P6021A - Opt. R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P6021A - Opt. R5 - Repair Service 5 Years (including warranty)
- P6021A - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P6021A |
|---|

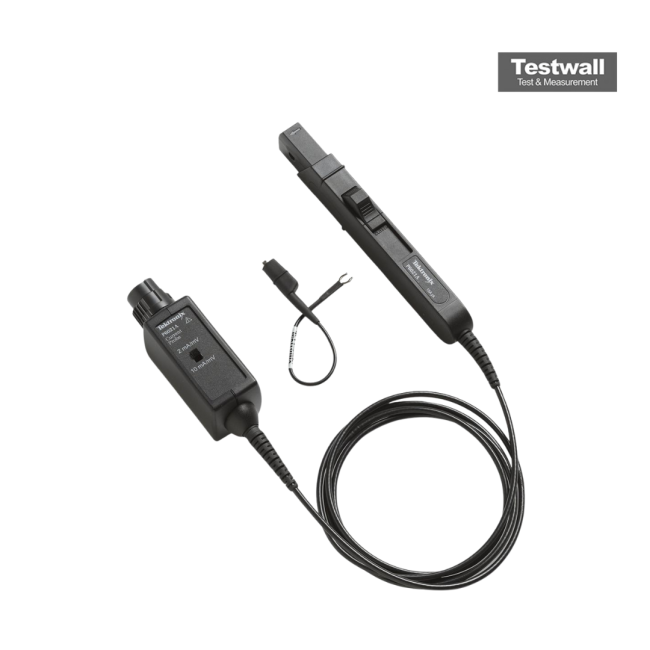

The Tektronix P6021A is an AC current probe offering a bandwidth from 120 Hz to 60 MHz, 10.6 A RMS current handling, and 10 mA sensitivity. It features split core construction, shielded non-grounded probe heads, and a 1.5 m cable for 1 MΩ inputs.
Perfect for general-purpose current measurements in motor drives, power supplies, and avionics, with no circuit break required during clipping.
Testwall can supply the used Tektronix P6021A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6021A.
