Tektronix P6022
| Attribute | Value |
|---|---|
| Bandwidth | 120 MHz |
| Current Measurement Range | 1 mA to 6 A RMS |
| Sensitivity | 1 mA/mV to 10 mA/mV |
| Maximum Peak Current | 10 A peak |
| Probe Type | AC Current Probe |
| Output Voltage | 1 mV/mA and 10 mV/mA |
| Frequency Range | 935 Hz to 120 MHz |
| Core Opening Diameter | 5.08 mm (0.2 in) |
| Cable Length | 1.5 m (4.9 ft) |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connector |
| Model | P6022 |
|---|

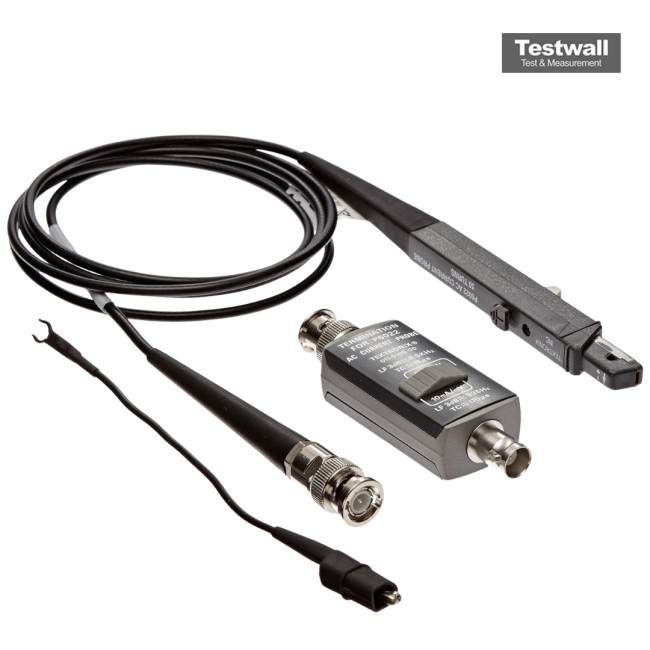

The Tektronix P6022 Current Probe delivers AC current measurements across 935 Hz to 120 MHz with 1 mA sensitivity, supporting 4 A RMS and 100 A peak currents. With a compact 10 mm x 6 mm head and passive termination switchable between 1 mA/mV and 10 mA/mV, it clips on for hassle-free connections.
Ideal for motor drives, inverters, avionics, and power supplies, the P6022 ensures accurate, non-intrusive readings via shielded, non-grounded split-core probes that fit tight spaces.
Testwall can supply the used Tektronix P6022, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6022.
