Tektronix P6209
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Rise Time | 350 ps |
| Input Impedance | 50 Ω |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±15 V (DC + Peak AC) |
| Cable Length | 1.2 m (4 ft) |
| Probe Type | Active FET Probe |
| Dynamic Range | ±0.6 V |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TekProbe Interface |
| Operating Temperature | 0°C to +50°C |
| Model | P6209 |
|---|

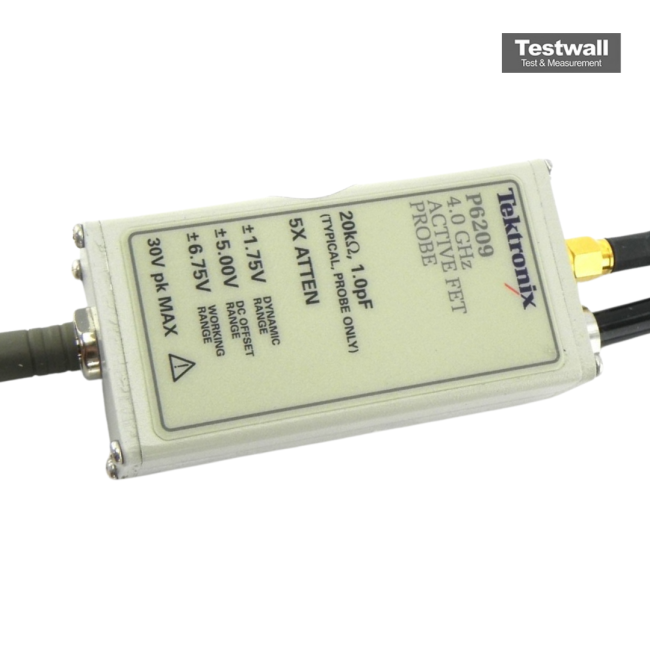

The Tektronix P6209 is a high-performance probe featuring 4.0 GHz bandwidth, 5X attenuation, less than 120 ps rise time, 20 kOhm DC resistance, and under 1 pF input capacitance. Designed with a TekProbe SMA interface, it ensures minimal circuit loading and precise signal acquisition.
Ideal for use with CSA/TDS8000B sampling oscilloscopes, the P6209's compact probe head enables easy access to fine-pitch SMDs and tight connection points for advanced diagnostics and testing.
Testwall can supply the used Tektronix P6209, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6209.
