Tektronix P6316
16 Channel General Purpose Logic Probe
16 Number of Channels
MSO4000, MSO4000B, DPO4000, DPO4000B Series Compatible Oscilloscopes
±40V (DC + Peak AC) Maximum Input Voltage
-10V to +10V Threshold Range
2.5 ns Minimum Detectable Pulse Width
| Attribute | Value |
|---|---|
| Number of Channels | 16 |
| Compatible Oscilloscopes | MSO4000, MSO4000B, DPO4000, DPO4000B Series |
| Maximum Input Voltage | ±40V (DC + Peak AC) |
| Threshold Range | -10V to +10V |
| Minimum Detectable Pulse Width | 2.5 ns |
| Input Impedance | 101 kΩ, 3 pF |
| Cable Length | 0.3 m (12 in.) |
| Operating Temperature | 0°C to +50°C |
| Logic Families Supported | TTL, CMOS, LVCMOS, LVTTL, ECL, PECL, LVPECL, CML |
| Connector Type | Mictor 38-pin connector |
Tektronix P6316 Options:
- P6316 - DPO2AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- P6316 - DPO2COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- P6316 - DPO2EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- P6316 - Opt. A0 - Power Plug: North America
- P6316 - Opt. A1 - Power Plug: Universal Euro
- P6316 - Opt. A2 - Power Plug: United Kingdom
- P6316 - Opt. A3 - Power Plug: Australia
- P6316 - Opt. A5 - Power Plug: Switzerland
- P6316 - Opt. A6 - Power Plug: Japan
- P6316 - Opt. A10 - Power Plug: China
- P6316 - Opt. A11 - Power Plug: India
- P6316 - Opt. A12 - Power Plug: Brazil
- P6316 - Opt. A99 - No power cord
- P6316 - Opt. L0 - Language: English (front-panel label on instrument)
- P6316 - Opt. L1 - Language: French (front-panel overlay)
- P6316 - Opt. L2 - Language: Italian (front-panel overlay)
- P6316 - Opt. L3 - Language: German (front-panel overlay)
- P6316 - Opt. L4 - Language: Spanish (front-panel overlay)
- P6316 - Opt. L5 - Language: Japanese (front-panel overlay)
- P6316 - Opt. L6 - Language: Portuguese (front-panel overlay)
- P6316 - Opt. L7 - Language: Simplified Chinese (front-panel overlay)
- P6316 - Opt. L8 - Language: Traditional Chinese (front-panel overlay)
- P6316 - Opt. L9 - Language: Korean (front-panel overlay)
- P6316 - Opt. L10 - Language: Russian (front-panel overlay)
- P6316 - Opt. D1 - Calibration Data Report
- P6316 - TAP1500 - 1.5 GHz TekVPI single-ended active probe
- P6316 - TDP0500 - 500 MHz TekVPI 42 V differential probe
- P6316 - TCP0020 - 50 MHz TekVPI 20 Ampere AC/DC current probe
- P6316 - TCP0030 - 120 MHz TekVPI 30 Ampere AC/DC current probe
- P6316 - TCP0150 - 20 MHz TekVPI 150 Ampere AC/DC current probe
- P6316 - TCP2020 - 50 MHz TekVPI 20 Ampere AC/DC current probe
- P6316 - TCPA300 - Current measurement system amplifier
- P6316 - TCPA400 - Current measurement system amplifier
- P6316 - TCP305 - DC to 50 MHz, 50 Ampere current probe for use with TCPA300
- P6316 - TCP404XL - DC to 2 MHz, 500 Ampere current probe for use with TCPA400
- P6316 - P5100A - 2.5 kV, 500 MHz, 100X high-voltage passive probe
- P6316 - TMDP0200 - ±750 V, 200 MHz high-voltage differential probe
- P6316 - THDP0200 - ±1.5 kV, 200 MHz high-voltage differential probe
- P6316 - THDP0100 - ±6 kV, 100 MHz high-voltage differential probe
- P6316 - ADA400A - 100X, 10X, 1X, 0.1X high-gain differential amplifier
- P6316 - DPO2CONN - Adds Ethernet (10/100Base-T) and Video Out Port
- P6316 - 077-0737-xx - Service Manual (English only) (PDF-only)
- P6316 - TPA-BNC - TekVPI to TekProbe BNC adapter
- P6316 - TEK-DPG - TekVPI Deskew Pulse Generator Signal Source
- P6316 - 067-1686-xx - Deskew and Calibration Fixture
- P6316 - 196-3508-xx - Digital Probe Leadset (8 channels)
- P6316 - 119-7465-xx - TekVPI External Power Supply
- P6316 - TEK-USB-488 - GPIB-to-USB adapter
- P6316 - ACD2000 - Soft Transit Case and Front Protective Cover
- P6316 - 200-5045-xx - Front Protective Cover
- P6316 - HCTEK4321 - Hard Transit Case (requires ACD2000)
- P6316 - RMD2000 - Rackmount Kit. Does not include slide-out rails.
| Model | P6316 |
|---|

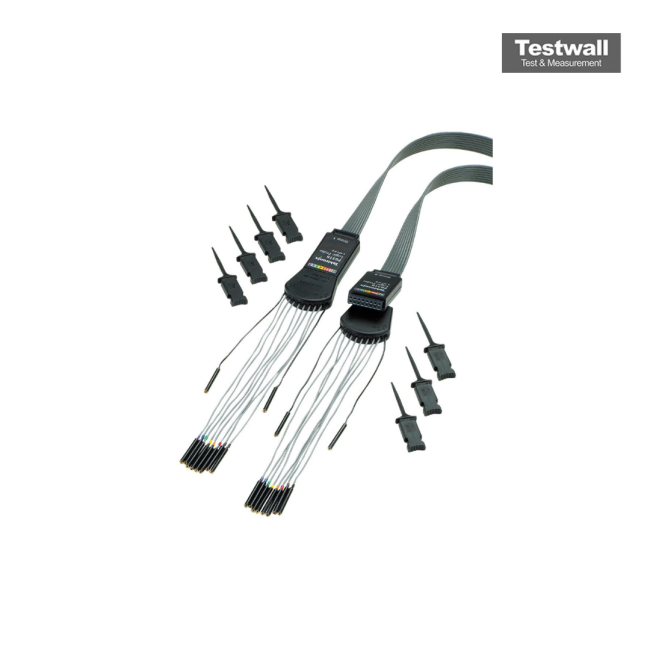

Tektronix P6316 16 Channel General Purpose Logic Probe
The Tektronix P6316 16 Channel General Purpose Logic Probe is a MSO Probe offers two eight-channel pods, simplifying the process of connecting to the device-under-test. Tektronix P6316 is used in various applications like digital circuit debugging, mixed-signal analysis, embedded system development and testing etc.
Tektronix P6316 16 Channel General Purpose Logic Probe offers outstanding electrical characteristics applying only 8pF of capacitive loading with 101kΩ input impedance. When connecting to square pins, the P6316 can connect directly to 8 x 2 square pin headers spaced on tenth-inch centers. When more attachment flexibility is required, you can use the included flying lead sets and grabbers to clip onto surface mount devices or test points.
Specifications for the Tektronix P6316 16 Channel General Purpose Logic Probe Include:
| Bandwidth | 200 MHz |
| Input voltage max | ±20 V |
| Test probe attenuation | 1x |
