Tektronix P6703B
| Attribute | Value |
|---|---|
| Wavelength Range | 750 nm to 1650 nm |
| Maximum Input Power | +3 dBm (2 mW) |
| Optical Connector Type | FC/PC |
| Bandwidth | DC to 1 GHz |
| Output Voltage Swing | ±0.5 V into 50 Ω |
| Conversion Gain | 500 V/W typical |
| Rise/Fall Time | 350 ps typical |
| Output Connector | SMA |
| Power Supply | Powered via Tektronix oscilloscope probe power connector |
| Compatible Instruments | Tektronix oscilloscopes with probe power interface |
Tektronix P6703B Options:
- P6703B - C3 - Calibration Service 3 Years
- P6703B - C5 - Calibration Service 5 Years
- P6703B - D1 - Calibration Data Report
- P6703B - D3 - Calibration Data Report 3 Years (with Option C3)
- P6703B - D5 - Calibration Data Report 5 Years (with Option C5)
- P6703B - R3 - Repair Service 3 Years
- P6703B - R5 - Repair Service 5 Years
- P6703B - A0 - US Plug, 115 V, 60 Hz
- P6703B - A1 - Euro Plug, 220 V, 50 Hz
- P6703B - A2 - UK Plug, 240 V, 50 Hz
- P6703B - A3 - Australian Plug, 240 V, 50 Hz
- P6703B - A5 - Swiss Plug, 220 V, 50 Hz
| Model | P6703B |
|---|

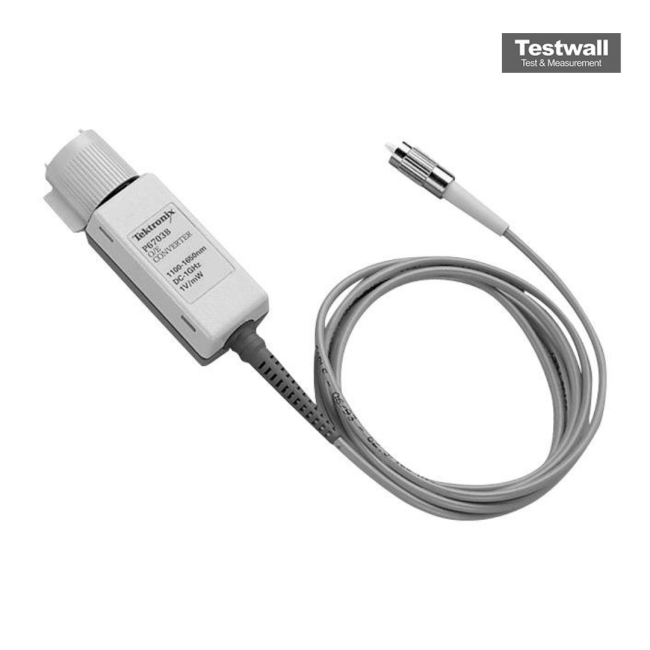

The Tektronix P6703B Optical-to-Electrical Converter offers a bandwidth of DC to 1.2 GHz and operates within a wavelength range of 1100 nm to 1650 nm. It provides a conversion gain of 1 V/mW and a typical rise time of ≤395 ps, using a 1-meter, 62.5µm multimode fiber with FC/PC connector. Designed for seamless integration with Tektronix DPO7000 and DPO/DSA/MSO70000 Series oscilloscopes via the TekProbe interface or the 1103 power supply.
This unit is optimal for optical pulse shape measurements, eye pattern analysis, and extinction measurements, offering high gain, broad dynamic range, and stable output offset for optical communication testing and development.
Testwall can supply the used Tektronix P6703B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6703B.
