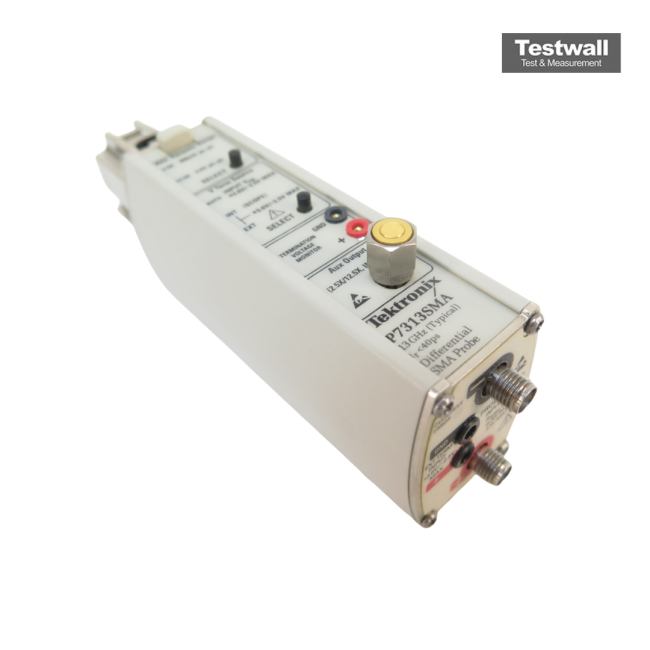

Tektronix P7313SMA
| Attribute | Value |
|---|---|
| Bandwidth | 12.5 GHz |
| Rise Time | 28 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±250 mV |
| Connector Type | SMA |
| Cable Length | 1.2 m (4 ft) |
| Compatible Oscilloscopes | Tektronix DPO/DSA/MSO70000 Series |
| Probe Interface | TriMode Interface |
| Operating Temperature | 0°C to +50°C |
| Attenuation Ratio | 1X |
Tektronix P7313SMA Options:
- P7313SMA - C3 - Calibration Service 3 Years
- P7313SMA - C5 - Calibration Service 5 Years
- P7313SMA - CA1 - Single Calibration or Functional Verification
- P7313SMA - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P7313SMA - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P7313SMA - R5 - Repair Service 5 Years (including warranty)
- P7313SMA - L0 - English manual
- P7313SMA - L5 - Japanese manual
- P7313SMA - L7 - Simplified Chinese manual
| Model | P7313SMA |
|---|
The Tektronix P7313SMA is a high-performance probe designed for low noise, differential signal integrity testing with real-time oscilloscopes. It supports >13.0 GHz bandwidth (16 GHz with DSP), 50 Ω termination, and differential SMA inputs, featuring an exceptional return loss and VSWR.
Ideal for high-speed serial standards like PCI Express, SATA, USB, and HDMI, it includes a switchable gain, 38-inch phase-matched SMA cables, and auxiliary outputs for extended test flexibility.
Testwall can supply the used Tektronix P7313SMA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7313SMA.
