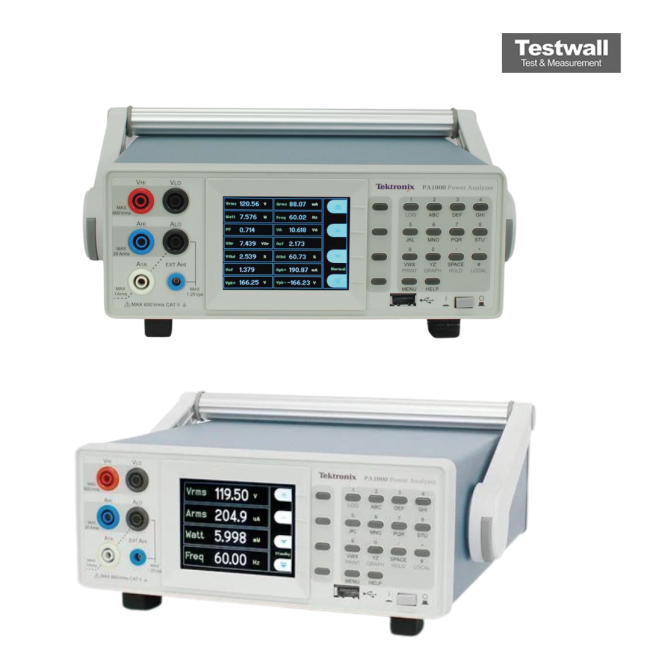

Tektronix PA1000
| Attribute | Value |
|---|---|
| Voltage Measurement Range | 1 mV to 1000 V RMS |
| Current Measurement Range | 1 mA to 20 A RMS (with internal shunt); up to 2000 A with external clamp |
| Frequency Range | DC and 10 Hz to 100 kHz |
| Power Measurement Accuracy | 0.1% of reading (basic power accuracy) |
| Number of Channels | 1 phase (single channel power analyzer) |
| Display | 4.3-inch color TFT LCD touchscreen |
| Connectivity & Interfaces | USB Host, USB Device, LAN (Ethernet), GPIB (optional) |
| Harmonic Analysis | Up to 500th harmonic measurement capability |
| Bandwidth | 1 MHz |
| Power Supply Input | 100 V to 240 V AC, 50/60 Hz |
Tektronix PA1000 Options:
- PA1000 - A0 - North America power plug (115 V, 60 Hz)
- PA1000 - A1 - Universal Euro power plug (220 V, 50 Hz)
- PA1000 - A2 - United Kingdom power plug (240 V, 50 Hz)
- PA1000 - A3 - Australia power plug (240 V, 50 Hz)
- PA1000 - A4 - North America power plug (240 V, 50 Hz)
- PA1000 - A5 - Switzerland power plug (220 V, 50 Hz)
- PA1000 - A6 - Japan power plug (100 V, 50/60 Hz)
- PA1000 - A10 - China power plug (50 Hz)
- PA1000 - A11 - India power plug (50 Hz)
- PA1000 - A12 - Brazil power plug (60 Hz)
- PA1000 - A99 - No power cord
- PA1000 - C3 - Calibration Service 3 Years
- PA1000 - C5 - Calibration Service 5 Years
- PA1000 - D1 - Calibration Data Report
- PA1000 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- PA1000 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- PA1000 - R5 - Repair Service 5 Years (including warranty)
- PA1000 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | PA1000 |
|---|
The Tektronix P80318 Differential TDR Probe offers 18 GHz bandwidth with 100 Ω differential input impedance for high-fidelity in-circuit impedance testing. Designed for balanced signal analysis, it enables accurate differential line probing without ground contact and features adjustable probe pitch from 0.5 mm to 4.2 mm for versatile PCB configurations.
Its dual-cushion tip design ensures consistent contact, and included SMA cables with parallel control lines enable EOS/ESD protection through integration with the 80A02 module.
Testwall can supply the used Tektronix P80318, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P80318.
