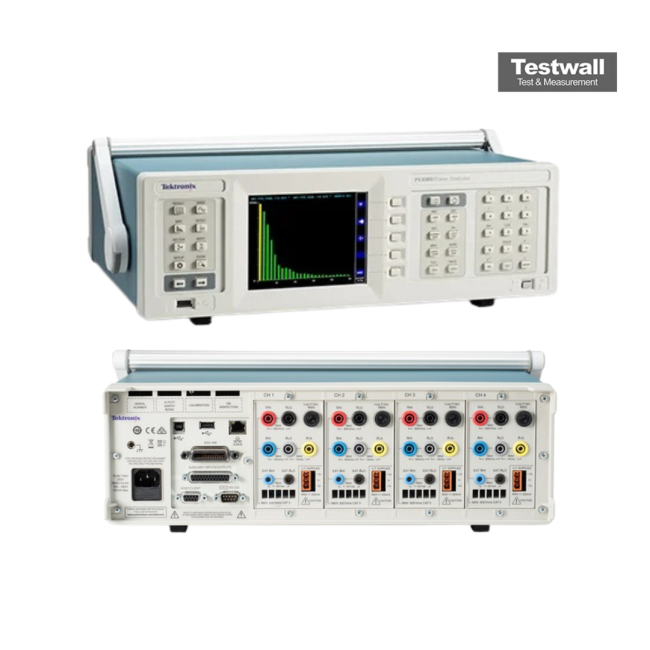

Tektronix PA3000
Power Analyzer
1 or 3 channels (single-phase or three-phase configurations) Number of Channels
Up to 1000 V RMS (direct input) Voltage Measurement Range
Up to 30 A RMS (direct input); extended range via external current sensors Current Measurement Range
0.1% reading accuracy for power measurements Basic Accuracy
DC and 1 MHz AC bandwidth Bandwidth
| Attribute | Value |
|---|---|
| Number of Channels | 1 or 3 channels (single-phase or three-phase configurations) |
| Voltage Measurement Range | Up to 1000 V RMS (direct input) |
| Current Measurement Range | Up to 30 A RMS (direct input); extended range via external current sensors |
| Basic Accuracy | 0.1% reading accuracy for power measurements |
| Bandwidth | DC and 1 MHz AC bandwidth |
| Display | 5.7-inch color TFT LCD touchscreen display |
| Connectivity / Interfaces | USB, LAN (Ethernet), and GPIB (optional) for remote control and data transfer |
| Measurement Parameters | Voltage, current, power (W), apparent power (VA), reactive power (VAR), power factor, harmonics up to 100th order, efficiency, and more |
| Frequency Range | DC and 0.1 Hz to 100 kHz |
| Standards Compliance | Meets IEC 62301, IEC 61000-3-2, and other international power measurement standards |
Tektronix PA3000 Options:
- PA3000 - 1CH - One input module installed
- PA3000 - 2CH - Two input modules installed
- PA3000 - 3CH - Three input modules installed
- PA3000 - 4CH - Four input modules installed
- PA3000 - GPIB - GPIB Interface
- PA3000 - C3 - Calibration Service 3 Years
- PA3000 - C5 - Calibration Service 5 Years
- PA3000 - D1 - Calibration Data Report
- PA3000 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- PA3000 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- PA3000 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- PA3000 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- PA3000 - A0 - North America power plug (115 V, 60 Hz)
- PA3000 - A1 - Universal Euro power plug (220 V, 50 Hz)
- PA3000 - A2 - United Kingdom power plug (240 V, 50 Hz)
- PA3000 - A3 - Australia power plug (240 V, 50 Hz)
- PA3000 - A4 - North America power plug (240 V, 50 Hz)
- PA3000 - A5 - Switzerland power plug (220 V, 50 Hz)
- PA3000 - A6 - Japan power plug (100 V, 50/60 Hz)
- PA3000 - A10 - China power plug (50 Hz)
- PA3000 - A11 - India power plug (50 Hz)
- PA3000 - A12 - Brazil power plug (60 Hz)
- PA3000 - A99 - No power cord
| Model | PA3000 |
|---|
The Tektronix PA3000 Power Analyzer features one to four channels for single or three-phase power analysis with 1 MHz bandwidth, 1 MS/s sampling rate, and 0.04% basic accuracy—ideal for high-efficiency power conversion testing.
Equipped with USB, LAN, and PWRVIEW software, it supports compliance testing to IEC 62301, EnergyStar, and CQC-3146, offering over 50 measurement functions, standby power analysis, and harmonic evaluation to the 100th order.
Testwall can supply the used Tektronix PA3000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PA3000.
