Tektronix PB200
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Rise Time | 1.75 ns |
| Input Impedance | 10 MΩ |
| Input Capacitance | 9.5 pF |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | 300 V RMS (CAT II) |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 10 pF to 35 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connector |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Tektronix GB1400 Options:
- GB1400 - Opt. 02 - 75 Ω Both Sets
- GB1400 - Opt. 05 - BURST Mode Both Sets
- GB1400 - Opt. 07 - Positive ECL Pattern Generator Only
- GB1400 - Opt. 08 - 1 MEG RAM WORD Both Sets & PC Pattern Editor Software
- GB1400 - Opt. 2M - Rack Mounts – 2
- GB1400 - Opt. A3 - Australian 240 V, 50 Hz
- GB1400 - Opt. 1M - Rack Mount
- gB1400T - Opt. 02 - 75 Ω Pattern Generator Only
- gB1400T - Opt. 05 - BURST Mode Pattern Generator Only
- gB1400T - Opt. 07 - Positive ECL Pattern Generator Only
- gB1400T - Opt. 08 - 1 MEG RAM WORD, Generator Only with PC Pattern Editor Software
- gB1400T - Opt. 1M - Rack Mount
- gB1400T - Opt. A3 - Australian 240 V, 50 Hz
- gB1400R - Opt. 02 - 75 Ω Error Detector Only
- gB1400R - Opt. 05 - BURST Mode Error Detector Only
- gB1400R - Opt. 08 - 1 MEG RAM WORD, Detector Only with PC Pattern Editor Software
- gB1400R - Opt. 1M - Rack Mount
- gB1400R - Opt. A3 - Australian 240 V, 50 Hz
| Model | PB200 |
|---|

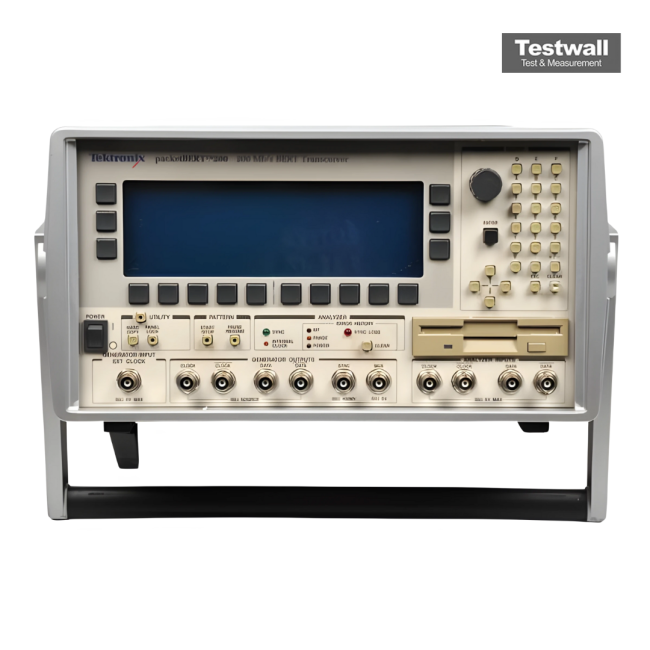

The Tektronix PacketBERT PB200 is a packet generator and error detector optimized for packet-based communication protocols like TDMA, ATM, and Satellite modems. It supports DC to 200 Mbit/s NRZ-1 data rates with programmable word memories (up to 256 Kbits) for creating custom packets with user-defined preamble, overhead, and data.
The PB200 provides precise BER testing, clock/data deskew up to 32 ns, and automatic eye-width measurement. Its mixed-mode capability, gapped clock generation, and built-in pattern editor offer unmatched flexibility for subsystem development testing.
Testwall can supply the used Tektronix PB200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PB200.
