Tektronix

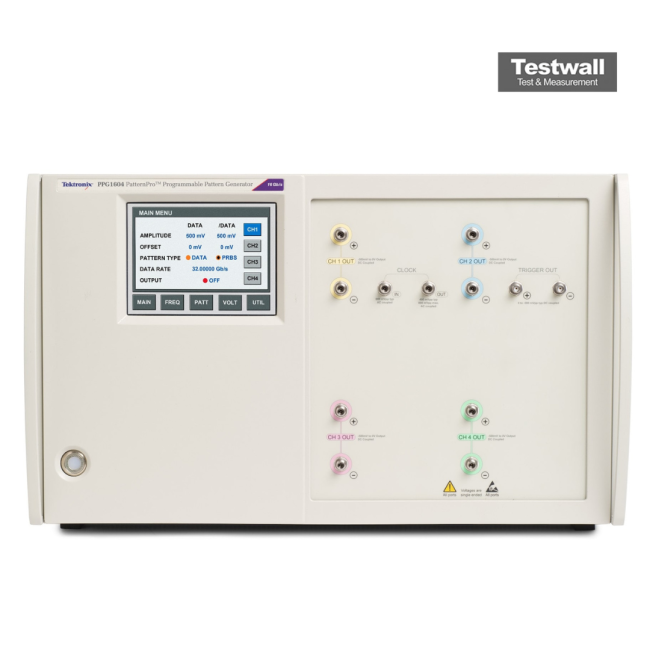

Tektronix PPG1604
4 Channel Programmable Pattern Generator 16 Gb/s
4 Number of Channels
Up to 1.6 Gb/s per channel Data Rate
-2 V to +3.8 V (single-ended) Voltage Output Range
≤ 200 ps (typical) Rise/Fall Time
50 Ω Output Impedance
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Data Rate | Up to 1.6 Gb/s per channel |
| Voltage Output Range | -2 V to +3.8 V (single-ended) |
| Rise/Fall Time | ≤ 200 ps (typical) |
| Output Impedance | 50 Ω |
| Pattern Memory Depth | Up to 256 Mb per channel |
| Reference Clock Input | External reference clock supported |
| Interface | GPIB, USB, and LAN (LXI compliant) |
| Operating Temperature | 0°C to 50°C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Tektronix PPG1604 Options:
- PPG1604 - HFJIT - High frequency jitter option for PPG1604
- PPG1604 - A0 - North America power plug (115 V, 60 Hz)
- PPG1604 - A1 - Universal Euro power plug (220 V, 50 Hz)
- PPG1604 - A2 - United Kingdom power plug (240 V, 50 Hz)
- PPG1604 - A6 - Japan power plug (100 V, 50/60 Hz)
- PPG1604 - A10 - China power plug (50 Hz)
- PPG1604 - A11 - India power plug (50 Hz)
- PPG1604 - A99 - No power cord
| Model | PPG1604 |
|---|
The Tektronix PPG1604 PatternPro® offers up to four 16–32 Gb/s output channels with low jitter (<250 fs), adjustable amplitude (250 mV–2.0 V), programmable offset, and advanced jitter insertion including BUJ, SJ, RJ, and PJ.
Engineered for 100G Ethernet and component testing, it supports PRBS/user patterns, phase delay, clock sync, touchscreen GUI, and pairs with PED series for full BER testing solutions.
Testwall can supply the used Tektronix PPG1604, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PPG1604.
