Tektronix
Tektronix PPG3001
1 Channel Programmable Pattern Generator 30 Gb/s
1 Number of Channels
3.35 Gb/s Maximum Data Rate
100 Mb/s Minimum Data Rate
0.4 V to 2.0 V (single-ended) Output Voltage Range
< 120 ps (20% to 80%) Rise/Fall Time
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Maximum Data Rate | 3.35 Gb/s |
| Minimum Data Rate | 100 Mb/s |
| Output Voltage Range | 0.4 V to 2.0 V (single-ended) |
| Rise/Fall Time | < 120 ps (20% to 80%) |
| Pattern Length | Up to 2^31 - 1 bits (PRBS) |
| Jitter Injection | Random, Sinusoidal, and Spread Spectrum |
| Output Connector Type | SMA |
| Reference Clock Input | External reference clock supported |
| Form Factor | Standalone Benchtop Instrument |
Tektronix PPG3001 Options:
- PPG3001 - HFJIT - High frequency jitter option for PPG3001
- PPG3001 - Opt. A0 - North America power plug (115 V, 60 Hz)
- PPG3001 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- PPG3001 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- PPG3001 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- PPG3001 - Opt. A10 - China power plug (50 Hz)
- PPG3001 - Opt. A11 - India power plug (50 Hz)
- PPG3001 - Opt. A99 - No power cord
| Model | PPG3001 |
|---|

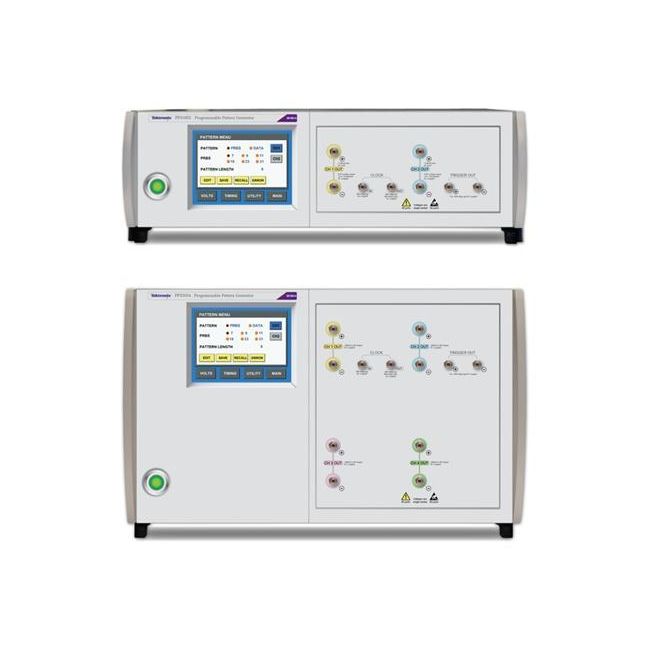

The Tektronix PPG3001 PatternPro® is a programmable pattern generator supporting 1 to 4 output channels up to 32 Gb/s, with PRBS/user patterns, adjustable amplitude (250 mV–2.0 V), offset, and jitter insertion options like BUJ, SJ, RJ, PJ.
Engineered for 100G Ethernet and component testing, it features touch screen GUI, USB control, phase delay, and aligns with PED series for full BER testing across multi-level signals.
Testwall can supply the used Tektronix PPG3001, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PPG3001.
