Tektronix PPG3202
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Data Rate | 3.2 Gb/s |
| Pattern Length | Up to 2^32 bits (PRBS) and up to 128 Mb user-defined patterns |
| Output Voltage Range | 0.4 V to 2.0 V (single-ended) |
| Rise/Fall Time | Less than 130 ps (typical, 20%–80%) |
| Jitter (RMS) | Less than 1.5 ps RMS (typical) |
| Output Termination | 50 Ω |
| Reference Clock Input | Internal or external reference clock supported |
| Interface | USB and LAN (LXI-compliant) |
| Operating Temperature | 0°C to 50°C |
Tektronix PPG3202 Options:
- PPG3202 - HFJIT - High frequency jitter option for PPG3202
- PPG3202 - LFJIT - Low frequency jitter option for PPG3202
- PPG3202 - A0 - North America power plug (115 V, 60 Hz)
- PPG3202 - A1 - Universal Euro power plug (220 V, 50 Hz)
- PPG3202 - A2 - United Kingdom power plug (240 V, 50 Hz)
- PPG3202 - A6 - Japan power plug (100 V, 50/60 Hz)
- PPG3202 - A10 - China power plug (50 Hz)
- PPG3202 - A11 - India power plug (50 Hz)
- PPG3202 - A99 - No power cord
| Model | PPG3202 |
|---|

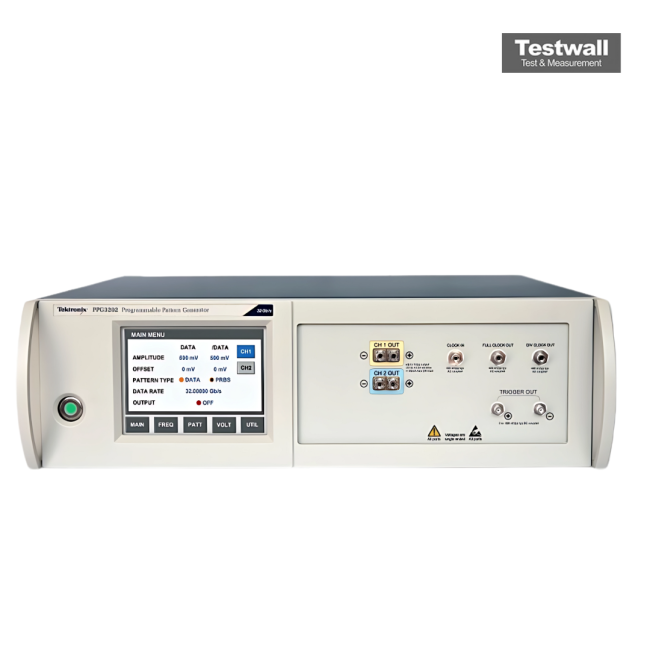

The Tektronix PPG3202 is a high-performance pattern generator offering up to 32 Gb/s data rates with 1 to 4 output channels. Designed for advanced high-speed applications, it features low jitter (<250 fs), fast rise/fall times, and supports PRBS/user-defined patterns with jitter injection options including BUJ, SJ, RJ, and PJ.
With aligned multi-channel outputs and programmable output parameters, the PPG3202 is ideal for testing Ethernet 100G, PAM4, DP-QPSK, and semiconductor devices. It pairs with Tektronix PED series detectors for complete BER testing.
Testwall can supply the used Tektronix PPG3202, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PPG3202.
