Tektronix

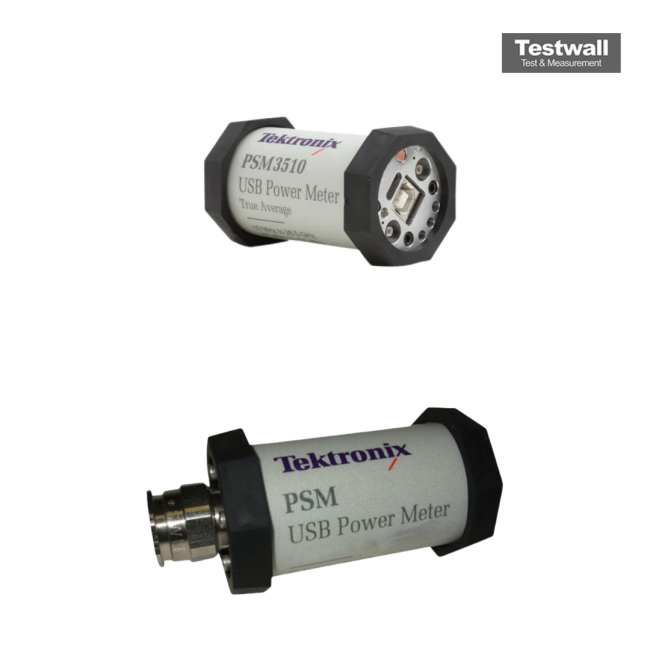

Tektronix PSM3110
USB Power Sensor, 10 MHz - 18 GHz, -55 dBm to +20 dBm, 3.5mm
100 kHz to 3.5 GHz Frequency Range
-30 dBm to +20 dBm Power Measurement Range
Up to 1,500 readings per second (buffered mode) Measurement Speed
N-Type (male) Connector Type
50 Ohms Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3.5 GHz |
| Power Measurement Range | -30 dBm to +20 dBm |
| Measurement Speed | Up to 1,500 readings per second (buffered mode) |
| Connector Type | N-Type (male) |
| Impedance | 50 Ohms |
| Interface | USB 2.0 |
| Measurement Uncertainty | ±0.5 dB (typical) |
| Operating Temperature | 0°C to +55°C |
| Power Supply | Bus-powered via USB |
| Compatible Software | OpenChoice Desktop, SignalVu-PC, National Instruments LabVIEW |
Tektronix PSM3110 Options:
- PSM3110 - C3 - Calibration Service 3 Years
- PSM3110 - C5 - Calibration Service 5 Years
- PSM3110 - R5 - Repair Service 5 Years
| Model | PSM3110 |
|---|
Tektronix Power Sensor
Tektronix PSM3110 USB Power Sensor, 10 MHz - 18 GHz, -55 dBmt +20 dBm, 3.5mm
The Tektronix PSM3000, PSM4000, and PSM5000 Series are compact power sensors/meters that deliver fast, accurate RF and microwave power measurements. A broad range of CW and pulse modulation measurements are available, depending on the series you choose. Each meter comes with Windows Power Meter application software for controlling the meter, displaying readings, and recording data. The combination of the sensor/meter and PC provides a complete solution, eliminating the need for a separate, dedicated meter mainframe.
Features and Specifications of the Tektronix PSM3110 includes:
- 8 GHz, 18 GHz, 20 GHz, and 26.5 GHz Models
- Models Available with N and 3.5 mm Connectors
- Dynamic Range as Low as €“60 dBm and as High as +20 dBm
- Uncertainty as Low as 2.6%
- Reading Rates up to 2000 Readings/s
