Tektronix

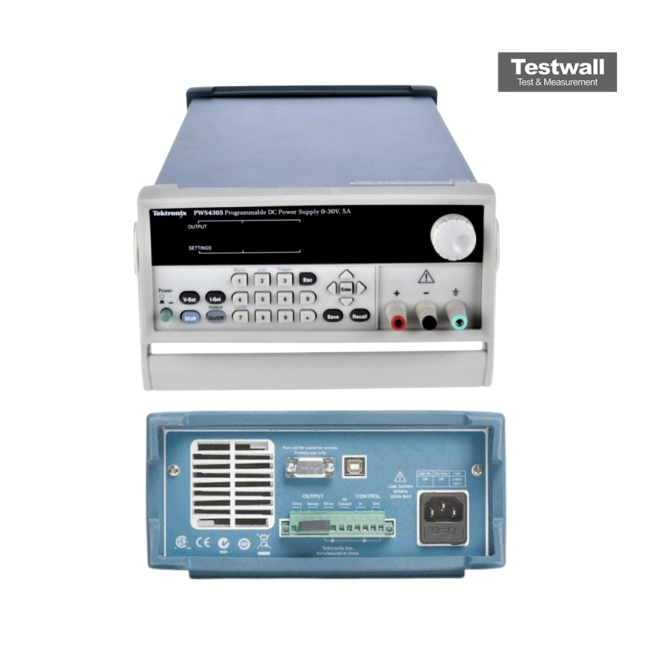

Tektronix PWS4305
Programmable DC Power Supply, 30 V, 5 A
0 to 30 V Output Voltage Range
0 to 5 A Output Current Range
150 W Maximum Output Power
1 Number of Output Channels
10 mV Voltage Setting Resolution
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 30 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 150 W |
| Number of Output Channels | 1 |
| Voltage Setting Resolution | 10 mV |
| Current Setting Resolution | 1 mA |
| Voltage Readback Accuracy | ±(0.1% + 20 mV) |
| Current Readback Accuracy | ±(0.2% + 5 mA) |
| Interface | USB |
| Display | 3.5-digit LED display for voltage and current |
Tektronix PWS4305 Options:
- PWS4305 - A0 - North America Power Plug
- PWS4305 - A1 - Universal Euro Power Plug
- PWS4305 - A2 - United Kingdom Power Plug
- PWS4305 - A3 - Australia Power Plug
- PWS4305 - A5 - Switzerland Power Plug
- PWS4305 - A10 - China Power Plug
- PWS4305 - A11 - India Power Plug
- PWS4305 - A12 - Brazil Power Plug
- PWS4305 - L0 - English Language
- PWS4305 - L1 - French Language
- PWS4305 - L2 - Italian Language
- PWS4305 - L3 - German Language
- PWS4305 - L4 - Spanish Language
- PWS4305 - L6 - Portuguese Language
- PWS4305 - L7 - Simplified Chinese Language
- PWS4305 - L8 - Traditional Chinese Language
- PWS4305 - L9 - Korean Language
- PWS4305 - L10 - Russian Language
- PWS4305 - C3 - Calibration Service 3 Years
- PWS4305 - C5 - Calibration Service 5 Years
- PWS4305 - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- PWS4305 - D1 - Calibration Data Report
- PWS4305 - D3 - Calibration Data Report 3 Years (with Option C3)
- PWS4305 - D5 - Calibration Data Report 5 Years (with Option C5)
- PWS4305 - R5 - Repair Service 5 Years
- PWS4305 - SILV100 - Standard Warranty Extended to 5 Years
| Model | PWS4305 |
|---|
The Tektronix PWS4305 delivers up to 72 V with 0.03 % voltage and 0.05 % current accuracy. It features overvoltage protection, remote sensing, 40 memory presets, low ripple (< 5 mVp‑p), and USB connectivity for clean and controlled power delivery.
Designed for varied DC applications, it includes a numeric keypad, rotary knob, list mode with up to 80 steps, and secure access for streamlined, safe testing.
Testwall can supply the used Tektronix PWS4305, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PWS4305.
