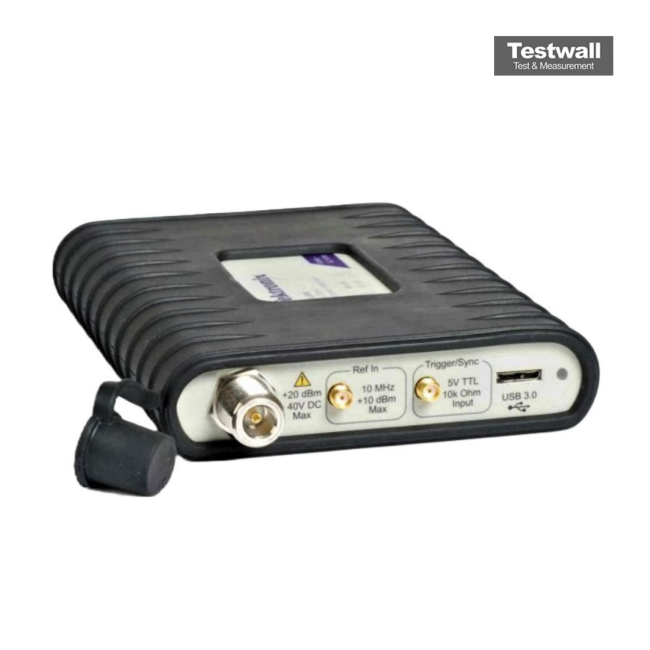

Tektronix RSA306B
6.2GHz USB Real Time Signal Analyzer, Type N (f)
9 kHz to 6.2 GHz Frequency Range
40 MHz Real-Time Bandwidth
-160 dBm/Hz (typ.) at 1 GHz Displayed Average Noise Level (DANL)
-95 dBc/Hz at 1 GHz, 10 kHz offset (typ.) Phase Noise
±2 dB Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6.2 GHz |
| Real-Time Bandwidth | 40 MHz |
| Displayed Average Noise Level (DANL) | -160 dBm/Hz (typ.) at 1 GHz |
| Phase Noise | -95 dBc/Hz at 1 GHz, 10 kHz offset (typ.) |
| Amplitude Accuracy | ±2 dB |
| Dynamic Range | 75 dB |
| Interface/Connectivity | USB 3.0 |
| Input Connector | Type-N Female, 50 Ω |
| Maximum Input Power | +20 dBm (continuous), +33 dBm (peak, <10 µs) |
| Power Requirements | Bus-powered via USB 3.0 (no external power supply required) |
Tektronix RSA306B Options:
- RSA306B - CTRL-G1-B - Portable controller, Brazil power
- RSA306B - FZ-G1 - Portable controller, China power
- RSA306B - CTRL-G1-E - Portable controller, Europe power
- RSA306B - CTRL-G1-I - Portable controller, India power
- RSA306B - CTRL-G1-N - Portable controller, North America power
- RSA306B - CTRL-G1-U - Portable controller, UK power
- RSA306B - C3 - Calibration Service 3 Years
- RSA306B - C5 - Calibration Service 5 Years
- RSA306B - D1 - Calibration Data Report
- RSA306B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA306B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA306B - R3 - Repair Service 3 Years (including warranty)
- RSA306B - R5 - Repair Service 5 Years (including warranty)
- RSA306B - SVANL-SVPC - AM/FM/PM/Direct Audio analysis (Node-locked)
- RSA306B - SVAFL-SVPC - AM/FM/PM/Direct Audio analysis (Floating)
- RSA306B - SVTNL-SVPC - Settling Time (frequency and phase) measurements (Node-locked)
- RSA306B - SVTFL-SVPC - Settling Time (frequency and phase) measurements (Floating)
- RSA306B - SVMNL-SVPC - General Purpose Modulation analysis, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SVMFL-SVPC - General Purpose Modulation analysis, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SVPNL-SVPC - Pulse Analysis, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SVPFL-SVPC - Pulse Analysis, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SVONL-SVPC - Flexible OFD analysis (Node-locked)
- RSA306B - SVOFL-SVPC - Flexible OFD analysis (Floating)
- RSA306B - SV23NL-SVPC - WLAN 802.11a/b/g/j/p measurement (Node-locked)
- RSA306B - SV23FL-SVPC - WLAN 802.11a/b/g/j/p measurement (Floating)
- RSA306B - SV24NL-SVPC - WLAN 802.11n measurement, requires SV23 (Node-locked)
- RSA306B - SV24FL-SVPC - WLAN 802.11n measurement, requires SV23 (Floating)
- RSA306B - SV25NL-SVPC - WLAN 802.11ac measurement, acquisition bandwidth ≤40 MHz, requires SV23 and SV24 (Node-locked)
- RSA306B - SV25FL-SVPC - WLAN 802.11ac measurement, acquisition bandwidth ≤40 MHz, requires SV23 and SV24 (Floating)
- RSA306B - SV26NL-SVPC - APCO P25 measurement (Node-locked)
- RSA306B - SV26FL-SVPC - APCO P25 measurement (Floating)
- RSA306B - SV27NL-SVPC - Bluetooth measurement, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SV27FL-SVPC - Bluetooth measurement, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - MAPNL-SVPC - Mapping (Node-locked)
- RSA306B - MAPFL-SVPC - Mapping (Floating)
- RSA306B - SV56NL-SVPC - Playback of recorded files (Node-locked)
- RSA306B - SV56FL-SVPC - Playback of recorded files (Floating)
- RSA306B - CONNL-SVPC - SignalVu-PC live link to RSA306B and MDO4000B/C series mixed-domain oscilloscopes (Node-locked)
- RSA306B - CONFL-SVPC - SignalVu-PC live link to RSA306B and MDO4000B/C series mixed-domain oscilloscopes (Floating)
- RSA306B - SV2CNL-SVPC - WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SV2CFL-SVPC - WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SV28NL-SVPC - LTE Downlink RF measurement, acquisition bandwidth ≤40 MHz (Node-locked)
- RSA306B - SV28FL-SVPC - LTE Downlink RF measurement, acquisition bandwidth ≤40 MHz (Floating)
- RSA306B - SV54NL-SVPC - Signal survey and classification (Node-locked)
- RSA306B - SV54FL-SVPC - Signal survey and classification (Floating)
- RSA306B - EDUFL-SVPC - Education-only version of all modules for SignalVu-PC (Floating)
| Model | RSA306B |
|---|
The Tektronix RSA306B USB Spectrum Analyzer covers a frequency range from 9 kHz to 6.2 GHz and features a real-time bandwidth of 40 MHz, Type-N RF connectors, and a 60 dBc SFDR. Its minimum event duration for 100% POI is 15 μs. It connects via USB to a PC running SignalVu-PC™ software, enabling comprehensive real-time analysis, streaming, and deep signal evaluation.
Designed for field, factory, and academic applications, the RSA306B separates signal acquisition from processing, allowing data handling and upgrades via any compatible PC, laptop, or tablet with minimal IT overhead.
Testwall can supply the used Tektronix RSA306B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA306B.
