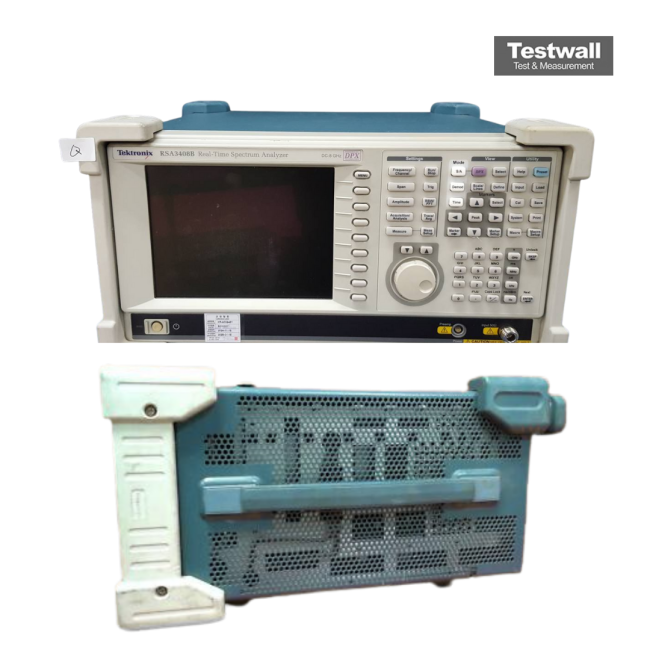

Tektronix RSA3408B
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 8 GHz |
| Real-Time Bandwidth | 36 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Spurious Free Dynamic Range (SFDR) | -65 dBc (typical) |
| Display | 10.4-inch color XGA LCD touchscreen |
Tektronix RSA3408B Options:
- RSA3408B - Opt. 02 - 65.5 MSample Deep Memory, Frequency Mask Trigger
- RSA3408B - Opt. 03 - IQ, Differential IQ inputs
- RSA3408B - Opt. 05 - Digital IQ Output (RSA3400B Models only)
- RSA3408B - Opt. 06 - Removable HDD (40 GB) (RSA3400B Models only)
- RSA3408B - Opt. 10 - Audio Distortion Analysis
- RSA3408B - Opt. 21 - Advanced Measurements Suite (GP Mod. Analysis, RFID, Sig. Source)
- RSA3408B - Opt. 24 - GSM/EDGE Analysis
- RSA3408B - Opt. 25 - CDMA 1X Forward/Reverse Link Analysis
- RSA3408B - Opt. 26 - 1X EVDO Forward/Reverse Link Analysis
- RSA3408B - Opt. 28 - TD-SCDMA Analysis
- RSA3408B - Opt. 29 - WLAN 802.11a/b/g/n Analysis (RSA3400B Models only)
- RSA3408B - Opt. 30 - 3GPP Release 99 (W-CDMA) and Release 5 UL/DL (HSDPA) Analysis
- RSA3408B - Opt. 40 - 3GPP Release 6 (HSUPA UL/DL) Analysis (requires Opt. 30)
- RSA3408B - Opt. A0 - Power Plug, North America
- RSA3408B - Opt. A1 - Power Plug, Universal EURO
- RSA3408B - Opt. A2 - Power Plug, United Kingdom
- RSA3408B - Opt. A3 - Power Plug, Australia
- RSA3408B - Opt. A4 - Power Plug, 240 V North America
- RSA3408B - Opt. A5 - Power Plug, Switzerland
- RSA3408B - Opt. A6 - Power Plug, Japan
- RSA3408B - Opt. A10 - Power Plug, China
- RSA3408B - Opt. A11 - Power Plug, India
- RSA3408B - Opt. A99 - No Power Cord or AC Adapter
- RSA3408B - Opt. CA1 - Single Calibration or Functional Verification
- RSA3408B - Opt. C3 - Calibration Service 3 Years
- RSA3408B - Opt. C5 - Calibration Service 5 Years
- RSA3408B - Opt. D1 - Calibration Data Report
- RSA3408B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA3408B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA3408B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- RSA3408B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- RSA3408B - Opt. R3 - Repair Service 3 Years
- RSA3408B - Opt. R5 - Repair Service 5 Years
- RSA3408B - Opt. L0 - User/Programmer Manual, English
- RSA3408B - Opt. L5 - User/Programmer Manual, Japanese
- RSA3408B - Opt. L10 - User/Programmer Manual, Russian
| Model | RSA3408B |
|---|
The Tektronix RSA3408B Real-Time Spectrum Analyzer offers DC to 8 GHz frequency range, delivering high-speed DPX spectrum display with >48,000 spectrum measurements/sec for live signal analysis. It captures all signals in spans up to 36 MHz and provides continuous acquisition up to 1.28 s at 36 MHz bandwidth.
With preselected, image-free operation and TekConnect probe interfacing, it ensures comprehensive RF signal visibility. Its discover-trigger-capture-analyze workflow enables rapid fault detection and deep time-correlated multi-domain analysis.
Testwall can supply the used Tektronix RSA3408B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA3408B.
