Tektronix RSA5106A
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 6.2 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB |
| Dynamic Range | 75 dB (third-order intermodulation) |
| Spurious-Free Dynamic Range (SFDR) | -65 dBc (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Acquisition Memory Depth | Up to 512 Msamples (with optional memory upgrade) |
Tektronix RSA5106A Options:
- RSA5106A - Opt. 50 - Internal Preamp, 1 MHz - 3/6.2 GHz
- RSA5106A - Opt. 52 - Frequency Mask Trigger
- RSA5106A - Opt. 53 - Memory Extension, 4 GB Acquisition Memory Total
- RSA5106A - Opt. 55 - Digital I and Q output
- RSA5106A - Opt. 56 - Removable HDD (160 GB), incompatible with Option 57 or 59
- RSA5106A - Opt. 57 - Internal HDD (160 GB) and DVD-R / CD-RW, incompatible with Option 56 or 59
- RSA5106A - Opt. 59 - Internal HDD (160 GB), incompatible with Option 56 or 57 (no cost option)
- RSA5106A - Opt. 11 - Phase Noise / Jitter Measurement
- RSA5106A - Opt. 12 - Settling Time (Frequency and Phase)
- RSA5106A - Opt. 20 - Advanced Signal Analysis (including pulse measurements)
- RSA5106A - Opt. 21 - General Purpose Modulation Analysis
- RSA5106A - Opt. 22 - Flexible OFDM Analysis
- RSA5106A - Opt. 40 - 40 MHz Acquisition Bandwidth
- RSA5106A - Opt. 85 - 85 MHz Acquisition Bandwidth
- RSA5106A - Opt. 200 - Advanced Triggers, Swept DPX, and DPX Zero Span
- RSA5106A - Opt. 5040 - Combines Option 50 (Preamp) and Option 40 (40 MHz Acquisition BW). Mutually exclusive to Options 50 and 40
- RSA5106A - Opt. 5085 - Combines Option 50 (Preamp) and Option 85 (85 MHz Acquisition BW). Mutually exclusive to Options 50 and 85
- RSA5106A - Opt. A0 - North America power
- RSA5106A - Opt. A1 - Universal Euro power
- RSA5106A - Opt. A2 - United Kingdom power
- RSA5106A - Opt. A3 - Australia power
- RSA5106A - Opt. A4 - 240 V, North America power
- RSA5106A - Opt. A5 - Switzerland power
- RSA5106A - Opt. A6 - Japan power
- RSA5106A - Opt. A10 - China power
- RSA5106A - Opt. A11 - India power
- RSA5106A - Opt. A12 - Brazil power
- RSA5106A - Opt. A99 - No power cord or AC adapter
- RSA5106A - Opt. L0 - English Manual
- RSA5106A - Opt. L5 - Japanese Manual
- RSA5106A - Opt. L7 - Simplified Chinese Manual
- RSA5106A - Opt. L10 - Russian Manual
- RSA5106A - Opt. CA1 - Single Calibration or Functional Verification
- RSA5106A - Opt. C3 - Calibration Service 3 Years
- RSA5106A - Opt. C5 - Calibration Service 5 Years
- RSA5106A - Opt. D1 - Calibration Data Report
- RSA5106A - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA5106A - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA5106A - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- RSA5106A - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- RSA5106A - Opt. R3 - Repair Service 3 Years
- RSA5106A - Opt. R5 - Repair Service 5 Years
| Model | RSA5106A |
|---|

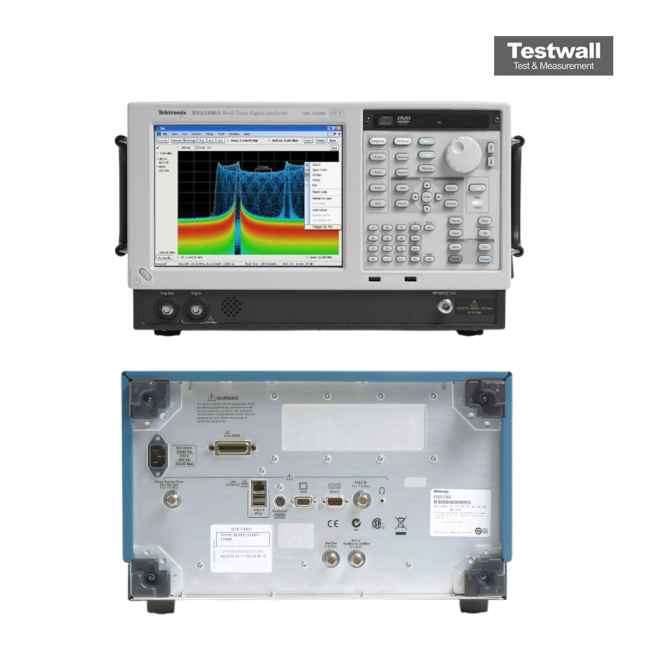

The Tektronix RSA5106A is a real-time signal analyzer covering frequencies from 1 Hz to 6.2 GHz, offering an optional 85 MHz bandwidth (opt 85). It provides exceptional displayed average noise level at –154 dBm/Hz (2 GHz) and phase noise at –109 dBc/Hz (1 GHz). The unit achieves high-resolution, low-noise sweeps, performing 1 GHz sweeps at 10 kHz RBW in under 1 second.
It supports up to 292,000 spectra and 50,000 time-domain waveforms per second with Swept DPX Spectrum, enabling full-range signal discovery (Opt 200).
Testwall can supply the used Tektronix RSA5106A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA5106A.
