Tektronix RSA6106A
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 6.2 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typ.) at 1 GHz |
| Phase Noise | -115 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB |
| Dynamic Range | 75 dB (spurious-free) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Acquisition Memory Depth | Up to 512 MB (captures up to 418 ms at 110 MHz bandwidth) |
| Trigger Types | Power, Frequency Mask, Time Qualified, IF Power, External, and more |
| Model | RSA6106A |
|---|

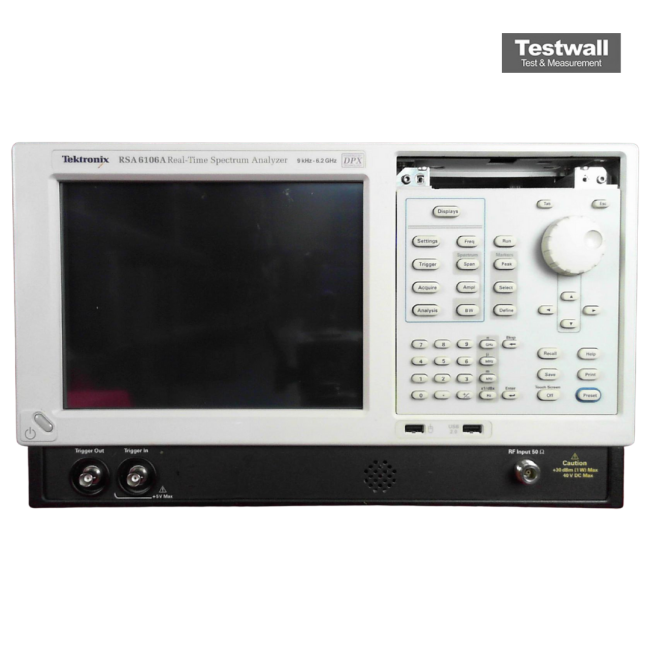

The Tektronix RSA6106A is a spectrum analyzer with a frequency range from 9 kHz to 6.2 GHz, featuring a Digital Phosphor screen capable of 48000 spectrums/sec update. It supports touch-screen, keyboard, mouse, and front panel interfaces with internal HDD and optional removable storage.
Ideal for spectrum management, radar/EW analysis, RF debugging, radio and satellite communications, and EMI diagnostics, it includes interface ports like GPIB, LAN, and USB (4 ports).
Testwall can supply the used Tektronix RSA6106A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA6106A.
