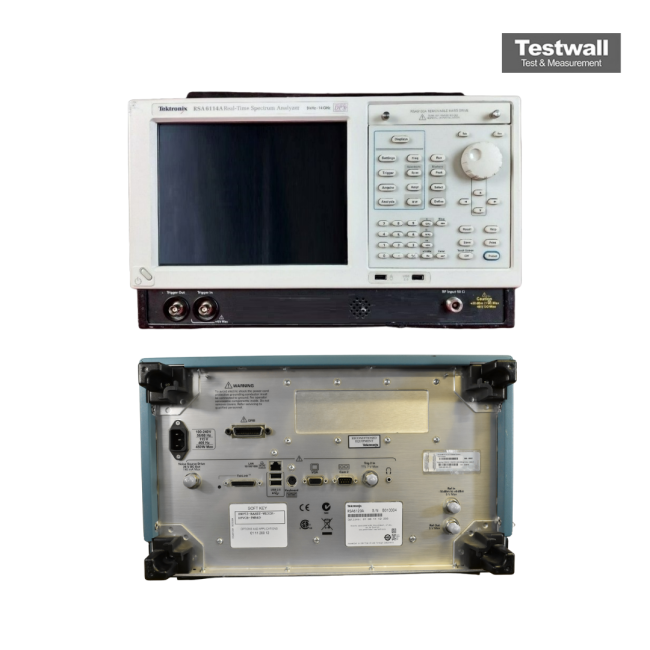

Tektronix RSA6114A
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 14 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical, 1 GHz, preamp on) |
| Phase Noise | -115 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Dynamic Range | 78 dB (third-order spurious free dynamic range, typical) |
| Spurious-Free Dynamic Range (SFDR) | -65 dBc (typical) |
| Acquisition Memory Depth | Up to 390 Msamples (with optional memory upgrade) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W), DC coupled |
| Model | RSA6114A |
|---|
The Tektronix RSA6114A offers a frequency range from 9 kHz to 14 GHz with a typical TOI of 20 dBm and DANL of –151 dBm/Hz at 2 GHz. It features always‑on preselection filters, image‑free analysis, ±0.5 dB amplitude accuracy to 3 GHz and ultra‑fast 1 GHz/10 kHz RBW sweeps. A full suite of signal statistics tools—Channel Power, ACLR, CCDF, Occupied Bandwidth, AM/FM/PM and Spurious—is included.
Ideal for spectrum management, radar/EW characterization, RF debugging and EMI diagnostics, the RSA6114A ensures precise performance across demanding applications.
Testwall can supply the used Tektronix RSA6114A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA6114A.
