Tektronix SA2500
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.5 GHz |
| Display | 6.5-inch color LCD touchscreen |
| Dynamic Range | Up to 110 dB |
| Resolution Bandwidth (RBW) | 10 Hz to 3 MHz |
| Phase Noise | -100 dBc/Hz at 10 kHz offset |
| DANL (Displayed Average Noise Level) | -163 dBm/Hz (typical) |
| Input Impedance | 50 Ohms |
| Battery Life | Up to 2 hours with internal battery |
| Connectivity | USB, LAN (Ethernet), Wi-Fi optional |
| Weight | Approximately 3.6 kg (7.9 lbs) |
Tektronix SA2500 Options:
- SA2500 - EP1 - Enhances SA2500 DPX™ Live RF spectrum display to 10,000 spectrums/sec and 125 µs minimum signal duration for 100% Probability of Intercept (POI)
- SA2500 - EP2 - Enhances SA2500 by adding signal classification to the Spectrum Notes capability. Provides capability to notate regions of RF spectrum. Provides capability to compare bandwidth, channel frequency, etc., to internal tables of standards. Can save a mask (stored display) of user-generated mask to enable spectrum violation measurement. Provides database to store these notation results, along with GPS location and time.
- SA2500 - L0 - English manual
- SA2500 - L99 - No manual
- SA2500 - A0 - North America
- SA2500 - A1 - Universal EURO
- SA2500 - A2 - United Kingdom
- SA2500 - A3 - Australia
- SA2500 - A5 - Switzerland
- SA2500 - A6 - Japan
- SA2500 - A10 - China
- SA2500 - A11 - India
- SA2500 - A12 - Brazil
- SA2500 - A99 - No Power Cord or AC Adapter
- SA2500 - R3 - Repair Service 3 Years
- SA2500 - R5 - Repair Service 5 Years
- SA2500 - C3 - Calibration Service 3 Years
- SA2500 - C5 - Calibration Service 5 Years
- SA2500 - D1 - Calibration Data Report
- SA2500 - D3 - Calibration Data Report 3 Years (with Option C3)
- SA2500 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | SA2500 |
|---|

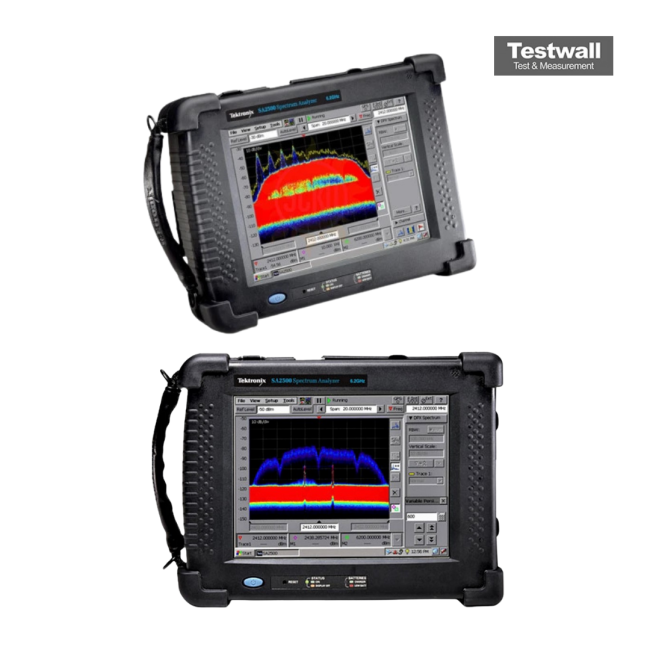

The Tektronix SA2500 Spectrum Analyzer offers benchtop performance in a handheld unit, featuring a 10 kHz to 6.2 GHz frequency range, -153 dBm DANL at 10 Hz RBW, and high SFDR for detecting low-level RF signals. It includes GPS mapping, a LAN interface, and dual hot-swappable batteries for extended field use.
Ideal for spectrum scanning, signal classification, and interference location in rugged field environments. The backlit display and Tap-and-Walk interface ensure reliable operation even in challenging conditions.
Testwall can supply the used Tektronix SA2500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SA2500.
