Tektronix SG503
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 250 MHz |
| Output Amplitude | 0.5 V to 3 V peak-to-peak (into 50 Ω) |
| Output Impedance | 50 Ω |
| Waveform Type | Sine wave |
| Harmonic Distortion | -30 dBc or better (250 kHz to 100 MHz); -25 dBc or better (100 MHz to 250 MHz) |
| Frequency Accuracy | ±1% of dial setting |
| Flatness | ±1 dB from 250 kHz to 250 MHz |
| Power Requirements | Powered via TM500 or TM5000 series mainframe |
| Form Factor | Single-width TM500/TM5000 plug-in module |
| Operating Temperature | 0°C to +50°C |
| Model | SG503 |
|---|

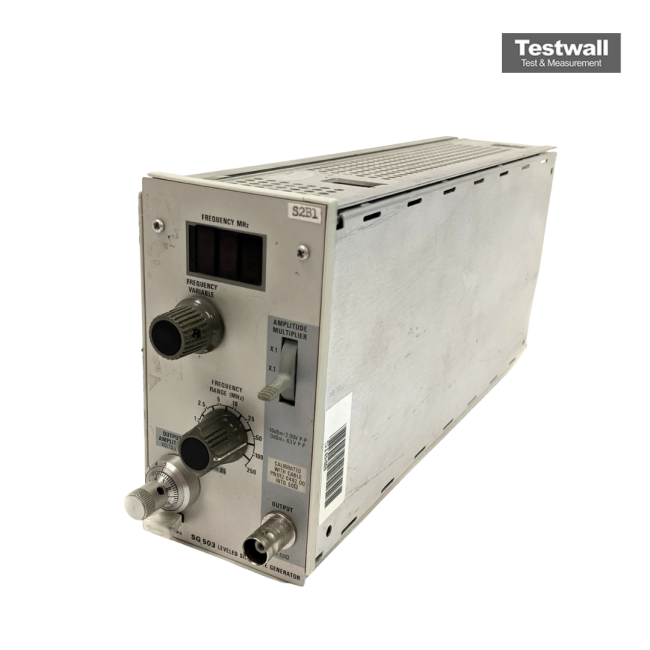

The Tektronix SG503 250MHz Signal Generator delivers precise RF signals up to 250 MHz, featuring low phase noise and stable frequency output for demanding test environments. It supports accurate signal generation with fine resolution and adjustable output levels, making it suitable for calibration, testing, and troubleshooting. Its modular plug-in design ensures compatibility with Tektronix TM500 series mainframes.
Ideal for RF circuit testing, component characterization, and system verification, the SG503 provides consistent performance in both laboratory and field applications, ensuring repeatable measurements and reliable results.
