Tektronix SJ300E
| Attribute | Value |
|---|---|
| Measurement Type | Jitter and Noise Analysis |
| Input Bandwidth | Up to 20 GHz |
| Data Rate Support | Up to 14.2 Gbps |
| Jitter Measurement Floor | Less than 100 fs RMS |
| Input Channels | 2 Differential Input Channels |
| Interface | USB and GPIB Connectivity |
| Operating Voltage | 100–240 VAC, 50/60 Hz |
| Display | 10.4-inch Color LCD Touchscreen |
| Operating Temperature | 0°C to 50°C |
| Compliance Standards | PCIe, SATA, SAS, USB 3.0, and other serial standards |
| Model | SJ300E |
|---|

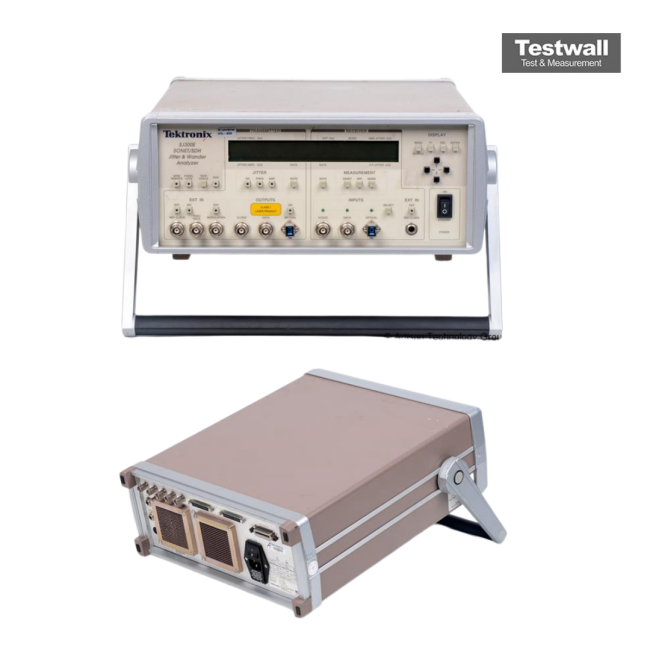

The Tektronix SJ300E is a portable, high-performance communication analyzer designed for Phase Jitter and Wander testing on SONET OC-1/3/12 and SDH STM-0/1/4 lines, up to 622 Mb/s. With Option 06, it also supports STM-n/OC-n and DS1/E1 wander generation and analysis. It features real-time jitter/wander diagnostics, RS-232 and GPIB interfaces, and conformance to ANSI, Bellcore, and ITU-T standards.
Ideal for both field applications and lab testing, the SJ300E ensures superior synchronization analysis and test sequence automation for jitter tolerance, transfer, and wander measurements.
Testwall can supply the used Tektronix SJ300E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SJ300E.
