Tektronix TAP1500
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Input Voltage Range | ±15 V (differential) |
| Input Impedance | 50 kΩ // 0.7 pF (differential) |
| Dynamic Range | ±10 V |
| Attenuation Ratio | 10X |
| Rise Time | 233 ps |
| Output Connector | SMA |
| Common Mode Rejection Ratio (CMRR) | >16 dB at 1 GHz |
| Operating Temperature | 0°C to +50°C |
| Power Consumption | Powered via TekVPI interface |
Tektronix TAP1500 Options:
- TAP1500 - L5 - Japanese manual
- TAP1500 - L7 - Simplified Chinese manual
- TAP1500 - C3 - Calibration Service 3 Years
- TAP1500 - C5 - Calibration Service 5 Years
- TAP1500 - D1 - Calibration Data Report
- TAP1500 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TAP1500 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TAP1500 - R3 - Repair Service 3 Years (including warranty)
- TAP1500 - R5 - Repair Service 5 Years (including warranty)
- TAP1500 - SILV600 - Standard warranty extended to 5 years
| Model | TAP1500 |
|---|

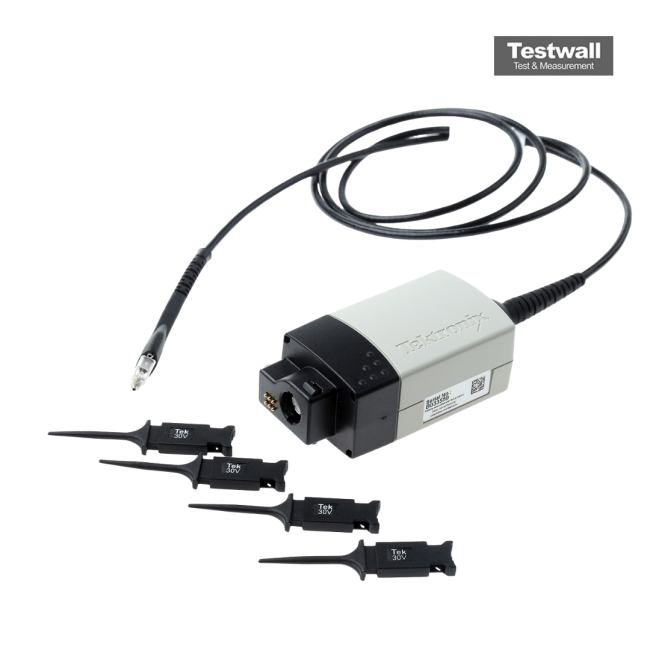

The Tektronix TAP1500 Active Probe delivers high-speed signal acquisition with 1.5 GHz bandwidth, ≤1 pF input capacitance, and 1 MΩ input resistance. Designed for TekVPI™ interface, it ensures minimal DUT loading and seamless integration with ≤1 GHz oscilloscopes. Features include 10x attenuation, ±8 V dynamic range, and 5.3 ns propagation delay.
Ideal for high-speed digital and component design, manufacturing, and educational applications with signals up to 16 Vp-p. Offers automatic scaling, remote control, and easy menu access via the oscilloscope.
Testwall can supply the used Tektronix TAP1500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TAP1500.
