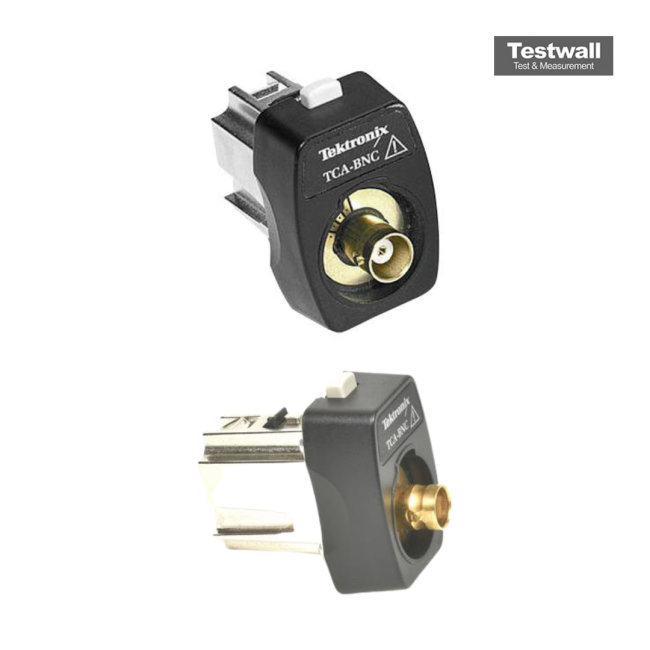

Tektronix TCA-BNC
| Attribute | Value |
|---|---|
| Compatibility | Tektronix TCA-BNC is compatible with TekConnect-enabled oscilloscopes and test instruments |
| Connector Type | BNC (Bayonet Neill–Concelman) coaxial connector interface |
| Interface Standard | TekConnect interface for direct connection to Tektronix instruments |
| Bandwidth | Up to 4 GHz bandwidth support |
| Input Impedance | 50 Ohm characteristic impedance |
| Signal Type | Supports single-ended signal measurements via BNC coaxial input |
| Adapter Function | Converts TekConnect port to standard BNC input for use with BNC-terminated probes and cables |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -40°C to +71°C (-40°F to +160°F) |
| Certifications | CE certified; meets applicable safety and electromagnetic compatibility (EMC) standards |
Tektronix TCA-BNC Options:
- TCA-BNC - P6150 - 9 GHz, 1X/10X, 50 Ω divider probe (use with TCA-SMA)
- TCA-BNC - P6158 - 3 GHz, 20X, 50 Ω divider probe (use with TCA-BNC)
- TCA-BNC - P6205 - 750 MHz, 10X, <2 pF / 10 MΩ high-speed active voltage probe (use with TCA-BNC)
- TCA-BNC - P6243 - 1 GHz, 10X, <1 pF / 1MΩ high-speed active voltage probe (use with TCA-BNC)
- TCA-BNC - P6245 - 1.5 GHz, 10X, <1 pF / 1 MΩ high-speed active voltage probe (use with TCA-BNC)
- TCA-BNC - P6247 - 1 GHz, 1X/10X, <1 pF / 200 kΩ differential high-speed active differential voltage probe (use with TCA-BNC)
- TCA-BNC - P6248 - 1.5 GHz, 1X/10X, <1 pF / 200 kΩ differential high-speed active differential voltage probe (use with TCA-BNC)
- TCA-BNC - P6330 - 3.5 GHz, 1X/10X, <1 pF / 200 kΩ differential high-speed active differential voltage probe (use with TCA-BNC)
- TCA-BNC - TCP202A - AC/DC, 20 A, TekProbe interconnect current probe (use with TCA-BNC)
- TCA-BNC - CT-1 - 1 GHz, AC current transformer (use with TCA-BNC)
- TCA-BNC - CT-2 - 200 MHz, AC current transformer (use with TCA-BNC)
- TCA-BNC - CT-6 - 2 GHz, AC current transformer (use with TCA-BNC)
- TCA-BNC - 012-0057-01 - 50 Ω BNC-to-BNC coaxial cable (use with TCA-BNC)
- TCA-BNC - 012-0482-00 - 50 Ω BNC-to-BNC coaxial cable, precision 1%, male-to-male (use with TCA-BNC)
- TCA-BNC - 011-0049-02 - 50 Ω feed-through termination (use with TCA-BNC)
| Model | TCA-BNC |
|---|
The Tektronix TCA-BNC Adapter expands oscilloscope capability with direct TekConnect-to-BNC conversion. It supports 50 Ω or 75 Ω input, auto attenuation correction, and provides up to ≥8 GHz bandwidth (instrument dependent). Enables use of TekProbe BNC 50 Ω high-speed probes and direct BNC input applications.
Ideal for adapting high-performance oscilloscopes to legacy or specialized BNC-based test setups, maintaining signal fidelity with low VSWR of 1.1:1 and flexible signal routing.
Testwall can supply the used Tektronix TCA-BNC, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCA-BNC.
