Tektronix TCPA400
| Attribute | Value |
|---|---|
| Bandwidth | DC to 100 MHz |
| Current Measurement Range | ±5 A to ±500 A (with compatible probes) |
| Amplifier Gain Settings | 1 mV/A, 2 mV/A, 5 mV/A, 10 mV/A, 20 mV/A, 50 mV/A, 100 mV/A |
| Output Voltage | ±2.5 V maximum output |
| Compatible Probes | TCP404XL, TCP400, TCP300, TCP305, TCP312, TCP315 |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Power Consumption | 30 W maximum |
| Output Connector | BNC connector |
| Operating Temperature | 0°C to +50°C |
| Dimensions (H x W x D) | 88 mm x 212 mm x 348 mm (3.5 in x 8.35 in x 13.7 in) |
Tektronix TCPA400 Options:
- TCPA400 - A0 - North America power plug (115 V, 60 Hz)
- TCPA400 - A1 - Universal Euro power plug (220 V, 50 Hz)
- TCPA400 - A2 - United Kingdom power plug (240 V, 50 Hz)
- TCPA400 - A3 - Australia power plug (240 V, 50 Hz)
- TCPA400 - A5 - Switzerland power plug (220 V, 50 Hz)
- TCPA400 - A6 - Japan power plug (100 V, 50/60 Hz)
- TCPA400 - A10 - China power plug (50 Hz)
- TCPA400 - A11 - India power plug (50 Hz)
- TCPA400 - A12 - Brazil power plug (60 Hz)
- TCPA400 - A99 - No power cord
- TCPA400 - C3 - Calibration Service 3 Years
- TCPA400 - C5 - Calibration Service 5 Years
- TCPA400 - D1 - Calibration Data Report
- TCPA400 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TCPA400 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TCPA400 - R3 - Repair Service 3 Years (including warranty)
- TCPA400 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- TCPA400 - R5 - Repair Service 5 Years (including warranty)
- TCPA400 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
- TCPA400 - SILV400 - Standard warranty extended to 5 years (TCP305A, TCP312A, TCPA300, TCPA400)
| Model | TCPA400 |
|---|

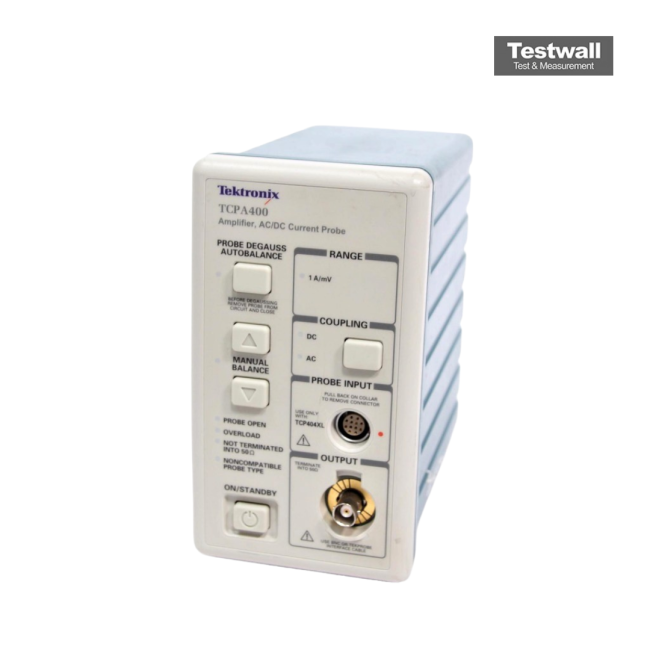

The Tektronix TCPA400 is a precision AC/DC current probe amplifier designed to support high-current measurements. When paired with the TCP404XL probe, it enables continuous current measurements up to 500 A DC and 750 A DC with derated duty cycles. The unit features AC/DC input coupling, low insertion impedance, and a split-core design for effortless circuit connection, while maintaining low noise and DC drift for accurate readings.
This amplifier is ideal for industrial and power electronic testing applications requiring stable high-current diagnostics. Certified by third-party safety standards, it ensures secure operation and measurement accuracy.
Testwall can supply the used Tektronix TCPA400, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCPA400.
