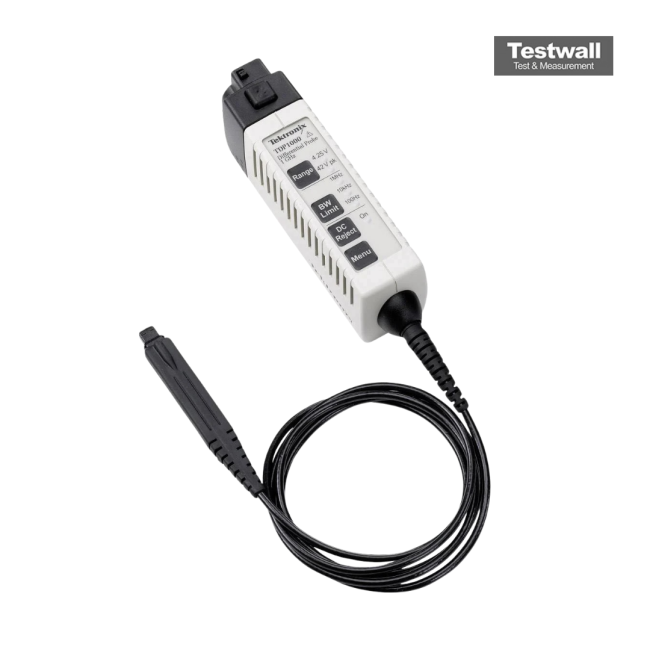

Tektronix TDP1000
| Manufacturer | Tektronix |
| Model | TDP1000 |
| Product | High Voltage Differential Probe, 1 GHz |
| Type | Used |
SKU
143700
Tektronix TDP1000 Diffeial Probe, 1 GHzThe Tektronix TDP1000 High-voltage Diffeial Probe is a versatile and easy to use probe that provides high-speed electrical and mechanical performance needed for Switch Mode Power Supply, CAN/LIN Bus, and for high-speed digital system designs. The Tektronix TDP1000 Probe is designed specifically for use with, and direct connection to, Tektronix Oscilloscopes with either the TekVPI™ probe interface, or TekProbe BNC Interface.Features and Specifications of the TDP1000 Diffeial Probe include: Features: Specifications: Versatile DUT Connectivity: Provides high-speed signal acquisition and measurement fidelity with its: Connects directly to Oscilloscope with the TekVPI™ probe interface Provides automatic units scaling and readout on the Oscilloscope display Embeds the probe characteristics within the Oscilloscope Easy access to scope-displayed probe menu: Remote GPIB/USB probe control through the Oscilloscope AutoZero: Zeros out output offset Applications: Small compact probe head for probing small geometry circuit elements Straight pin, square pin, solder down, variable pitch standard accessories Robust design for reliability Outstanding electrical performance Versatile device-under-test connectivity Ease of use for probe setup control for operating status information High-speed switch mode power supply design CAN/LIN bus design High-speed digital design Digital design and characterization Manufacturing engineering and test Research and development Probe Bandwidth: 1 GHz Probe Attenuation: 5X, 50X Probe Rise Time: ≤350 ps Diffeial Input Capacitance: Diffeial Input Resistance: 1 MΩ CMRR: Sensitivity /Noise Level: Diffeial Mode Input Voltage: ±42 V (DC + pk AC); 30 VRMS Common Mode Input Voltage: ±35 V (DC + pk AC); 25 VRMS Input Offset Range: ±42 V (5X or 50X attenuation) Max Input Voltage (Nondestruct): ±100 V (DC + pk AC) Selectable Bandwidth Filter Limits: 100 Hz, 10 kHz, 1 MHz, Full DC Reject: Gain Accuracy at DC: ±2% Propagation Delay: 6.5 ns Probe Interface: TekVPI™ Probe Interface >55 dB at 30 kHz >50 dB at 1 MHz >18 dB at 250 MHz (warranted at 50X attenuation) 2 mVRMS (5X attenuation) 1 mVRMS (50X attenuation) referred to the probe output 10 mVRMS (5X attenuation) 50 mVRMS (50X attenuation) referred to the probe input 0.4 Hz (5X) 4 Hz (50X)
- Versatile DUT Connectivity:
- Small compact probe head for probing small geometry circuit elements
- Straight pin, square pin, solder down, variable pitch standard accessories
- Robust design for reliability
- Provides high-speed signal acquisition and measurement fidelity with its:
- Outstanding electrical performance
- Versatile device-under-test connectivity
- Ease of use
- Connects directly to Oscilloscope with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the Oscilloscope display
- Embeds the probe characteristics within the Oscilloscope
- Easy access to scope-displayed probe menu:
- for probe setup control
- for operating status information
- Remote GPIB/USB probe control through the Oscilloscope
- AutoZero: Zeros out output offset
- Applications:
- High-speed switch mode power supply design
- CAN/LIN bus design
- High-speed digital design
- Digital design and characterization
- Manufacturing engineering and test
- Research and development
- Probe Bandwidth: 1 GHz
- Probe Attenuation: 5X, 50X
- Probe Rise Time: ≤350 ps
- Diffeial Input Capacitance:
- Diffeial Input Resistance: 1 MΩ
- CMRR:
- >55 dB at 30 kHz
- >50 dB at 1 MHz
- >18 dB at 250 MHz (warranted at 50X attenuation)
- Sensitivity /Noise Level:
- 2 mVRMS (5X attenuation)
- 1 mVRMS (50X attenuation) referred to the probe output
- 10 mVRMS (5X attenuation)
- 50 mVRMS (50X attenuation) referred to the probe input
- Diffeial Mode Input Voltage: ±42 V (DC + pk AC); 30 VRMS
- Common Mode Input Voltage: ±35 V (DC + pk AC); 25 VRMS
- Input Offset Range: ±42 V (5X or 50X attenuation)
- Max Input Voltage (Nondestruct): ±100 V (DC + pk AC)
- Selectable Bandwidth Filter Limits: 100 Hz, 10 kHz, 1 MHz, Full
- DC Reject:
- 0.4 Hz (5X)
- 4 Hz (50X)
- Gain Accuracy at DC: ±2%
- Propagation Delay: 6.5 ns
- Probe Interface: TekVPI™ Probe Interface
