Tektronix TDS2004
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 70 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 5.7-inch color LCD |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Input Coupling | AC, DC, GND |
Tektronix TDS2004 Options:
Options available for the Tektronix TDS200 / TDS1000 / TDS2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS2004 - TDS2CM - Communications extension module (GPIB, RS-232, Centronics)
- TDS2004 - TDS2CMA - Communications extension module (GPIB, RS-232, Centronics)
- TDS2004 - TDS2MM - Measurement extension module (FFT, GPIB, RS-232, Centronics)
- TDS2004 - TDS2MEM - Storage memory and communications module (CompactFlash)

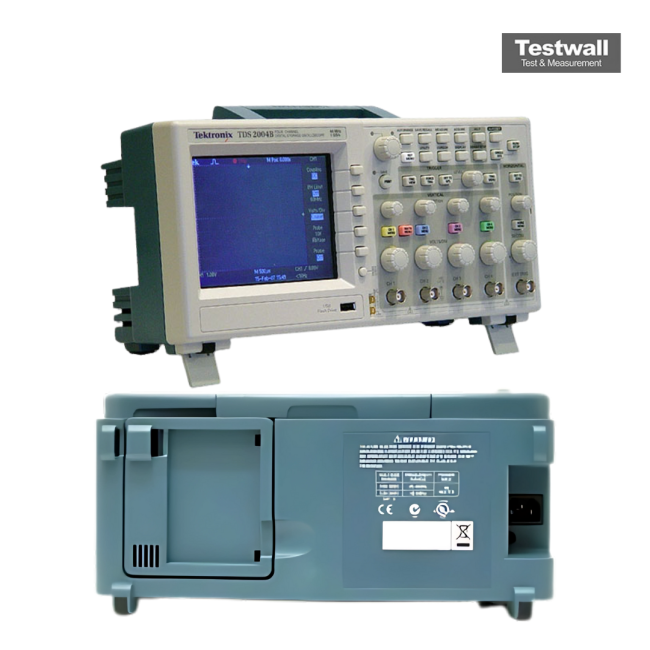

The Tektronix TDS2004 is a four-channel digital oscilloscope ideal for mid-range applications requiring synchronized multi-input signal analysis. It features a 60 MHz bandwidth and 1 GS/s sample rate per channel, providing high-resolution waveform visualization on a vibrant color display.
Integrated FFT math functions, XY display, edge/video/pulse-width triggering, and waveform averaging enhance signal analysis. Expandable with TDS2MEM for CompactFlash, GPIB, RS-232, and printing options.
Testwall can supply the used Tektronix TDS2004, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2004.
