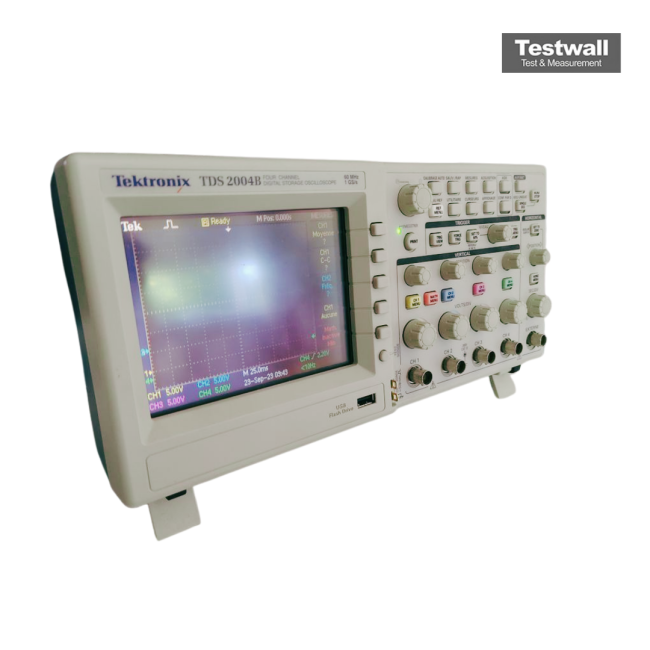

Tektronix TDS2004B
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 70 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 5.7-inch color LCD |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Connectivity | USB host and device ports for data storage and PC communication |
Tektronix TDS2004B Options:
- TDS2004B - A0 - North America power
- TDS2004B - A1 - Universal Euro power
- TDS2004B - A2 - United Kingdom power
- TDS2004B - A3 - Australia power
- TDS2004B - A5 - Switzerland power
- TDS2004B - A6 - Japan power
- TDS2004B - A10 - China power
- TDS2004B - A11 - India power
- TDS2004B - A99 - No power cord or AC adapter
- TDS2004B - L0 - English manual
- TDS2004B - L1 - French manual
- TDS2004B - L2 - Italian manual
- TDS2004B - L3 - German manual
- TDS2004B - L4 - Spanish manual
- TDS2004B - L5 - Japanese manual
- TDS2004B - L6 - Portuguese manual
- TDS2004B - L7 - Simplified Chinese manual
- TDS2004B - L8 - Standard Chinese manual
- TDS2004B - L9 - Korean manual
- TDS2004B - L10 - Russian manual
- TDS2004B - C3 - Calibration Service 3 years
- TDS2004B - C5 - Calibration Service 5 years
- TDS2004B - D1 - Calibration Data Report
- TDS2004B - D3 - Calibration Data Report 3 years (with Opt. C3)
- TDS2004B - D5 - Calibration Data Report 5 years (with Opt. C5)
- TDS2004B - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
The Tektronix TDS2004B is an upgraded 4-channel digital storage oscilloscope offering 60 MHz bandwidth and 1 GS/s sample rate, ensuring accurate signal capture. It features a vivid color LCD for better waveform visualization and a user-focused interface with dedicated front-panel controls for faster operation. The oscilloscope includes standard 2.5 kpt memory depth and USB file export, enhancing its practicality in field applications.
Designed with Autoset, Probe Check, and integrated help, the TDS2004B supports both novice and expert users, ensuring efficient diagnostics and streamlined workflows across electronic testing environments.
Testwall can supply the used Tektronix TDS2004B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2004B.
