Tektronix TDS2012B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Rise Time | 3.5 ns |
| Display | 5.7-inch color LCD |
| Input Impedance | 1 MΩ in parallel with 20 pF |
Tektronix TDS2012B Options:
- TDS2012B - A0 - North America power
- TDS2012B - A1 - Universal Euro power
- TDS2012B - A2 - United Kingdom power
- TDS2012B - A3 - Australia power
- TDS2012B - A5 - Switzerland power
- TDS2012B - A6 - Japan power
- TDS2012B - A10 - China power
- TDS2012B - A11 - India power
- TDS2012B - A99 - No power cord or AC adapter
- TDS2012B - L0 - English manual
- TDS2012B - L1 - French manual
- TDS2012B - L2 - Italian manual
- TDS2012B - L3 - German manual
- TDS2012B - L4 - Spanish manual
- TDS2012B - L5 - Japanese manual
- TDS2012B - L6 - Portuguese manual
- TDS2012B - L7 - Simplified Chinese manual
- TDS2012B - L8 - Standard Chinese manual
- TDS2012B - L9 - Korean manual
- TDS2012B - L10 - Russian manual
- TDS2012B - C3 - Calibration Service 3 years
- TDS2012B - C5 - Calibration Service 5 years
- TDS2012B - D1 - Calibration Data Report
- TDS2012B - D3 - Calibration Data Report 3 years (with Opt. C3)
- TDS2012B - D5 - Calibration Data Report 5 years (with Opt. C5)
- TDS2012B - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
| Model | TDS2012B |
|---|

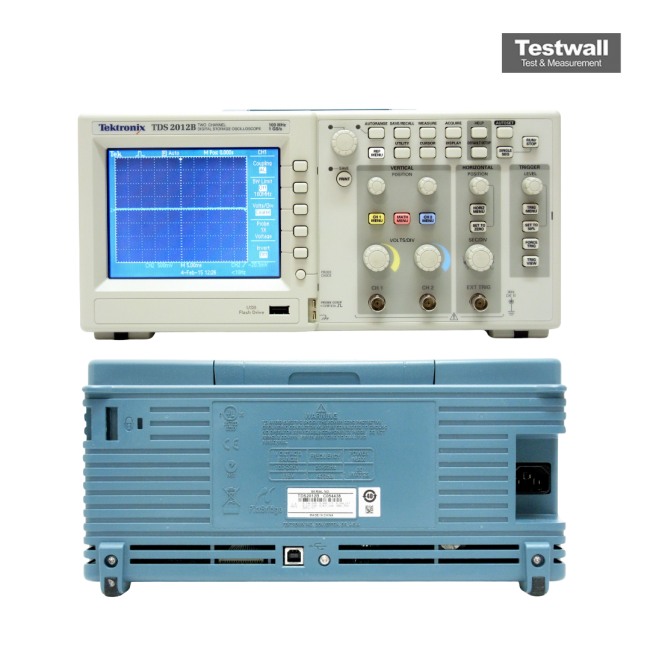

The Tektronix TDS2012B is a 2-channel oscilloscope featuring 100 MHz bandwidth and 1 GS/s sampling rate. It integrates a color LCD and an intuitive interface with context-sensitive help, Autoset, and Probe Check functions for streamlined operation. Dual time-base and USB storage options, reference buffers, standard math functions, and FFT enhance analysis and diagnostic capabilities.
Ideal for electronic troubleshooting, the TDS2012B supports fast setup and efficient waveform examination through refined menu navigation and comprehensive math features.
Testwall can supply the used Tektronix TDS2012B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2012B.
