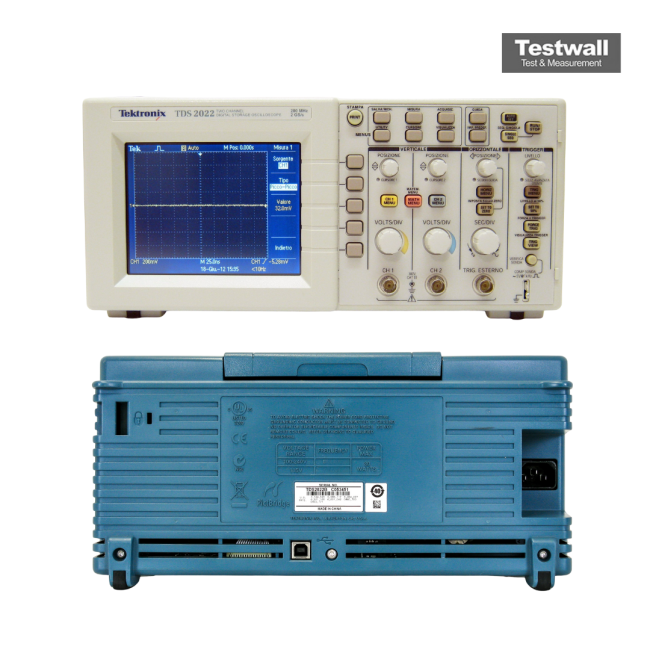

Tektronix TDS2022
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7-inch color LCD |
| Input Coupling | AC, DC, GND |
| Model | TDS2022 |
|---|
The Tektronix TDS2022 is a precision dual-channel oscilloscope featuring 200 MHz bandwidth and 2 GS/s sampling rate per channel, ensuring detailed signal capture for high-speed applications. The B-series models provide a 4-channel layout, expanding input capabilities and flexibility.
With features such as Autoset, Probe Check, contextual help, and a vivid color display, it offers user-friendly operation. FFT analysis, varied trigger modes, and USB ports enhance its documentation and analytical strengths.
Testwall can supply the used Tektronix TDS2022, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2022.
