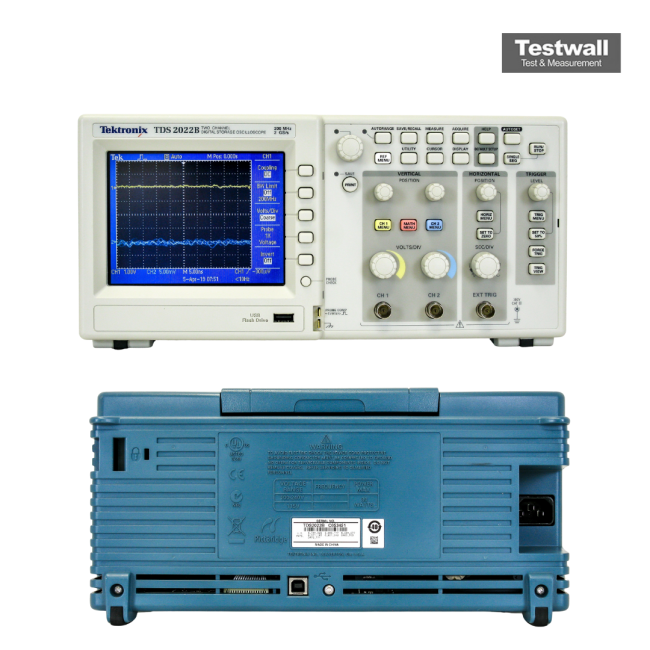

Tektronix TDS2022B
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7-inch color LCD, 320 x 240 resolution |
| Connectivity | USB 2.0 Host and Device ports for data storage and PC communication |
Tektronix TDS2022B Options:
- TDS2022B - A0 - North America power
- TDS2022B - A1 - Universal Euro power
- TDS2022B - A2 - United Kingdom power
- TDS2022B - A3 - Australia power
- TDS2022B - A5 - Switzerland power
- TDS2022B - A6 - Japan power
- TDS2022B - A10 - China power
- TDS2022B - A11 - India power
- TDS2022B - A99 - No power cord or AC adapter
- TDS2022B - L0 - English manual
- TDS2022B - L1 - French manual
- TDS2022B - L2 - Italian manual
- TDS2022B - L3 - German manual
- TDS2022B - L4 - Spanish manual
- TDS2022B - L5 - Japanese manual
- TDS2022B - L6 - Portuguese manual
- TDS2022B - L7 - Simplified Chinese manual
- TDS2022B - L8 - Standard Chinese manual
- TDS2022B - L9 - Korean manual
- TDS2022B - L10 - Russian manual
- TDS2022B - C3 - Calibration Service 3 years
- TDS2022B - C5 - Calibration Service 5 years
- TDS2022B - D1 - Calibration Data Report
- TDS2022B - D3 - Calibration Data Report 3 years (with Opt. C3)
- TDS2022B - D5 - Calibration Data Report 5 years (with Opt. C5)
- TDS2022B - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
The Tektronix TDS2022B oscilloscope offers 200 MHz bandwidth and 2 GS/s real-time sampling, ensuring precise signal capture across two channels. Equipped with a color LCD display, USB ports for data transfer and PC connectivity, FFT, math functions, and advanced triggers including pulse width and video triggers, it supports efficient and accurate signal analysis. It also features 11 automatic measurements and a multilingual interface.
Ideal for circuit characterization and fault analysis, the TDS2022B enables waveform operations like add, subtract, and multiply. Users benefit from seamless integration with OpenChoice® and NI SignalExpress® software.
Testwall can supply the used Tektronix TDS2022B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2022B.
