Tektronix TDS2024
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Sample Rate | 2 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | Color LCD, 320 x 240 pixels |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Connectivity | USB host port for data storage, RS-232 interface |
| Model | TDS2024 |
|---|

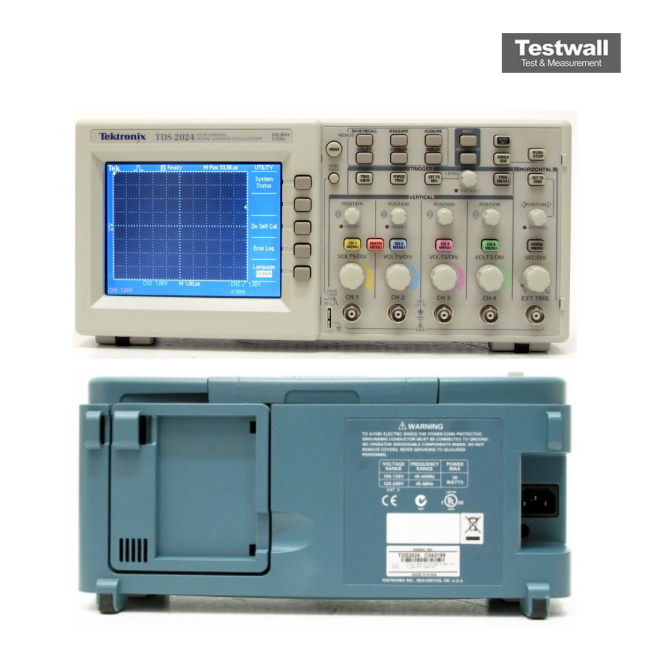

The Tektronix (Aglient) TDS2024 oscilloscope delivers accurate real‑time signal acquisition up to 200 MHz bandwidth across four channels, with a 2.0 GS/s sample rate per channel and 2.5k‑point record length, plus 11 automatic measurements and FFT math analysis for frequency-domain troubleshooting.
Equipped with a 1/4‑VGA color LCD, ±3 % DC vertical accuracy, vertical sensitivity from 2 mV to 5 V/div, horizontal zoom, advanced triggers, external trigger input, and durable 300 VRMS CAT II input, the TDS2024 offers versatile and precise waveform inspection.
Testwall can supply the used Tektronix TDS2024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2024.
