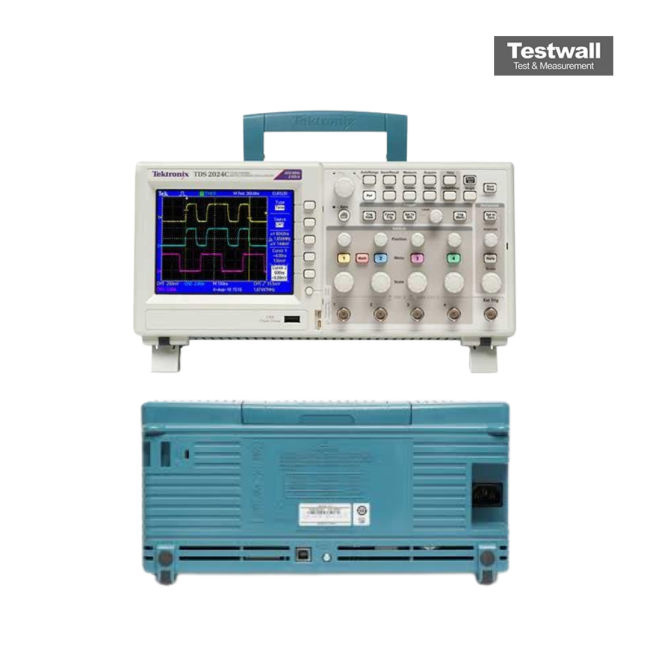

Tektronix TDS2024C
| Manufacturer | Tektronix |
| Model | TDS2024C |
| Product | Digital Storage Oscilloscope, 200 MHz 4 Ch., 2 GS/s |
| Type | Used |
SKU
144038
Tektronix TDS2024C The Tektronix TDS2024C Digital Storage Oscilloscope is packed full of features providing powerful, proficient performance in an easy-to-use, compact design with flexible data transfer. The Tektronix proprietary sampling technology provides real-time sampling for accurately capturing signals and sampling performance is never reduced when using multiple channels. Advanced triggers help to isolate signals, advanced math capabilities and automated measurement speed up analysis, and critical tools help troubleshoot the device making the Tektronix TDS2024C Oscilloscope the perfect solution for manufacturing and service applications where decisions need to be made quickly.Features and Specifications of the Tektronix TDS2024C Digital Storage Oscilloscope include: Features: Connectivity: Specifications: 16 Automated Measurements, and FFT Analysis fo Simplified Waveform Analysis Built-in Waveform Limit Testing Automated, Extended Data Logging Feature Autoset and Signal Auto-ranging Built-in context-sensitive Help Probe Check Wizard Multiple-language User Interface 5.7 in (144 mm) Active TFT Color Display External Trigger Input Small Footprint and Lightweight Quick and Easy Data Storage: USB 2.0 Host Port on Front Panel Easy Connection to a PC or Direct Printing to a compatible printer: USB 2.0 Device Port on Rear Panel Characteristics: I/O Intervaces: Nonvolatile Storage:
- 16 Automated Measurements, and FFT Analysis fo Simplified Waveform Analysis
- Built-in Waveform Limit Testing
- Automated, Extended Data Logging Feature
- Autoset and Signal Auto-ranging
- Built-in context-sensitive Help
- Probe Check Wizard
- Multiple-language User Interface
- 5.7 in (144 mm) Active TFT Color Display
- External Trigger Input
- Small Footprint and Lightweight
- Quick and Easy Data Storage: USB 2.0 Host Port on Front Panel
- Easy Connection to a PC or Direct Printing to a compatible printer: USB 2.0 Device Port on Rear Panel
- Characteristics:
- Display (QVGA LCD): TFT
- Bandwidth: 200 MHz
- Channels: 4
- Sample Rate on Each Channel: 2.0 GS/s
- Record Length: 2.5k points at all time bases
- Vertical Resolution: 8 bits
- Vertical Sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
- DC Vertical Accuracy: +3 %
- Vertical Zoom: Vertically expand or compress a live or stopped waveform
- Maximum Input Voltage: 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
- Position Range:
- 2 mV to 200 mV/div +2 V
- >200 mV to 5 V/div +50 V
- Bandwidth Limit: 20 MHz
- Input Coupling: AC., DC, GND
- Input Impedance: 1 M ohm in parallel with 20 pF
- Time Base Range: 2.5 ns to 50 s/div
- Time Base Accuracy: 50 ppm
- Horizontal Zoom: Horizontally expand or compress a live or stopped waveform
- I/O Intervaces:
- USB Ports:
- USB host port on front panel supports USB flash drives
- USB device port on back of instrument supports conncection to PC and all PictBridge-compatible printers
- GPIB: optional
- USB Ports:
- Nonvolatile Storage:
- Reference Waveform Display: (2) 2.5k point reference waveforms
- Waveform Storage without USB Flash Drive: (4) 2.5k point
- Maximum USB Flash Drive Size: 64 GB
- Waveform Storage with USB Flash Drive: 96 or more reference waveforms per 8 MB
- Setups without USB Flash Drive: 10 front-panel setups
- Setups with USB Flash Drive: 4000 or more front-panel setups per 8 MB
- Screen Images with USB Flash Drive: 128 or more screen images per 8 MB (the number of images depends on file format selected)
- Save All with USB Flash Drive:
- 12 or more Save All operations per 8 MB
- A singe Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)
- Display (QVGA LCD): TFT
- Bandwidth: 200 MHz
- Channels: 4
- Sample Rate on Each Channel: 2.0 GS/s
- Record Length: 2.5k points at all time bases
- Vertical Resolution: 8 bits
- Vertical Sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
- DC Vertical Accuracy: +3 %
- Vertical Zoom: Vertically expand or compress a live or stopped waveform
- Maximum Input Voltage: 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
- Position Range:
- 2 mV to 200 mV/div +2 V
- >200 mV to 5 V/div +50 V
- Bandwidth Limit: 20 MHz
- Input Coupling: AC., DC, GND
- Input Impedance: 1 M ohm in parallel with 20 pF
- Time Base Range: 2.5 ns to 50 s/div
- Time Base Accuracy: 50 ppm
- Horizontal Zoom: Horizontally expand or compress a live or stopped waveform
- USB Ports:
- USB host port on front panel supports USB flash drives
- USB device port on back of instrument supports conncection to PC and all PictBridge-compatible printers
- GPIB: optional
- Reference Waveform Display: (2) 2.5k point reference waveforms
- Waveform Storage without USB Flash Drive: (4) 2.5k point
- Maximum USB Flash Drive Size: 64 GB
