Tektronix TDS3012C
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1.25 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | Color LCD, 640 x 480 resolution |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Connectivity | USB host and device ports, CompactFlash card slot |
Tektronix TDS3012C Options:
- TDS3012C - Opt. A0 - North America Power Cord
- TDS3012C - Opt. A1 - Universal Euro Power Cord
- TDS3012C - Opt. A2 - United Kingdom Power Cord
- TDS3012C - Opt. A3 - Australia Power Cord
- TDS3012C - Opt. A5 - Switzerland Power Cord
- TDS3012C - Opt. A6 - Japan Power Cord
- TDS3012C - Opt. A10 - China Power Cord
- TDS3012C - Opt. A11 - India Power Cord
- TDS3012C - Opt. A99 - No Power Cord
- TDS3012C - Opt. L0 - English Manual
- TDS3012C - Opt. L1 - French Manual
- TDS3012C - Opt. L2 - Italian Manual
- TDS3012C - Opt. L3 - German Manual
- TDS3012C - Opt. L4 - Spanish Manual
- TDS3012C - Opt. L5 - Japanese Manual
- TDS3012C - Opt. L6 - Portuguese Manual
- TDS3012C - Opt. L7 - Simplified Chinese Manual
- TDS3012C - Opt. L8 - Traditional Chinese Manual
- TDS3012C - Opt. L9 - Korean Manual
- TDS3012C - Opt. L10 - Russian Manual
- TDS3012C - Opt. L99 - No Manual
- TDS3012C - Opt. CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- TDS3012C - Opt. C3 - Calibration Service – 3 years
- TDS3012C - Opt. C5 - Calibration Service – 5 years
- TDS3012C - Opt. D1 - Calibration Data Report
- TDS3012C - Opt. D3 - Calibration Data Report – 3 years (with Option C3)
- TDS3012C - Opt. D5 - Calibration Data Report – 5 years (with Option C5)
- TDS3012C - Opt. R5 - Repair Service – 5 year
| Model | TDS3012C |
|---|

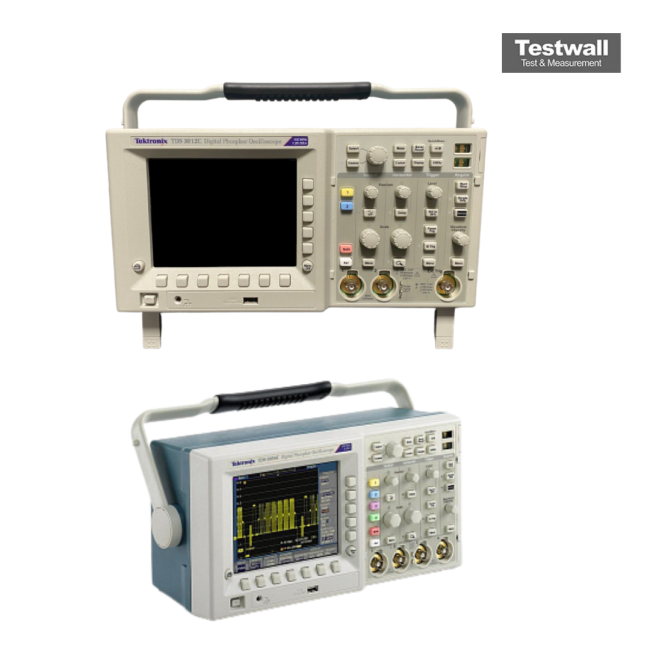

The Tektronix TDS3012C is a 2-channel digital phosphor oscilloscope offering 100 MHz bandwidth and 1.25 GS/s real-time sampling on all channels, with a 10k point record length. It features advanced DRT sampling and sin(x)/x interpolation, ensuring accurate waveform reconstruction and the ability to detect high-frequency anomalies. The 3,600 wfms/s waveform capture rate and real-time intensity grading provide superior signal insight, supported by USB and Ethernet connectivity, FFT, and 25 automatic measurements.
Ideal for digital design, telecommunications, power analysis, and education, the TDS3012C includes advanced triggering, application-specific modules, and supports various active and differential probes through the TekProbe interface.
Testwall can supply the used Tektronix TDS3012C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3012C.
