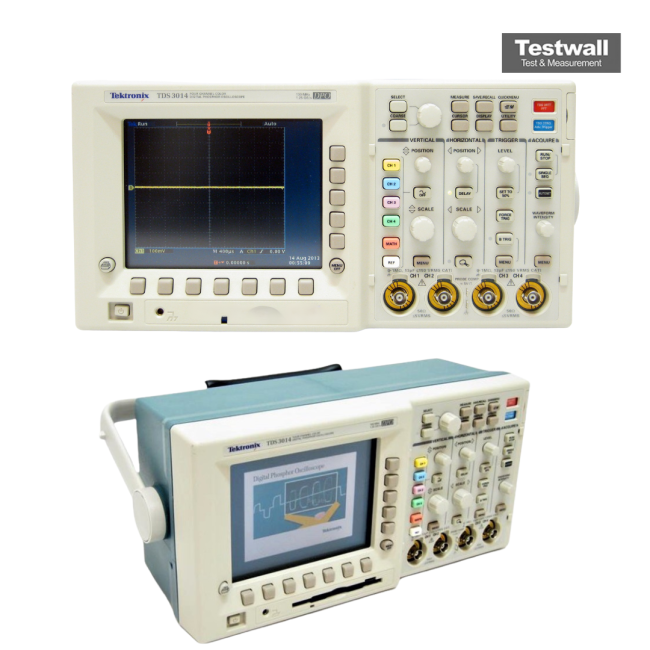

Tektronix TDS3014
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 1.25 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Time Base Range | 5 ns/div to 10 s/div |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Display | Color LCD, 640 x 480 pixels |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Connectivity | RS-232, Centronics, GPIB (optional) |
Tektronix TDS3014 Options:
- TDS3014 - A1 - Universal Euro 220 V, 50 Hz (161-0104-06)
- TDS3014 - A2 - United Kingdom 240 V, 50 Hz (161-0104-07)
- TDS3014 - A3 - Australia 240 V, 50 Hz (161-0104-05)
- TDS3014 - A5 - Switzerland 220 V, 50 Hz (161-0167-00)
- TDS3014 - A6 - Japan 3 to 2 wire adapter (013-0310-00)
- TDS3014 - L1 - French User Manual
- TDS3014 - L2 - Italian User Manual
- TDS3014 - L3 - German User Manual
- TDS3014 - L4 - Spanish User Manual
- TDS3014 - L5 - Japanese User Manual
- TDS3014 - L6 - Portuguese User Manual
- TDS3014 - L7 - Simplified Chinese User Manual
- TDS3014 - L8 - Traditional Chinese User Manual
- TDS3014 - L9 - Korean User Manual
- TDS3014 - LR - Russian User Manual
| Model | TDS3014 |
|---|
The Tektronix TDS3014 is a 100 MHz, 4-channel digital oscilloscope delivering up to 5 GS/s sample rates, 9-bit vertical resolution, and a full VGA color LCD. It includes 21 automatic measurements, built-in floppy disk, advanced triggers, and FFT analysis. Options for RS-232, GPIB, LAN, and VGA modules provide versatile connectivity for any lab.
Ideal for telecom testing, digital design, and video applications, the TDS3014 supports mask testing, active probe scaling, and mobile use with an optional battery pack.
Testwall can supply the used Tektronix TDS3014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3014
