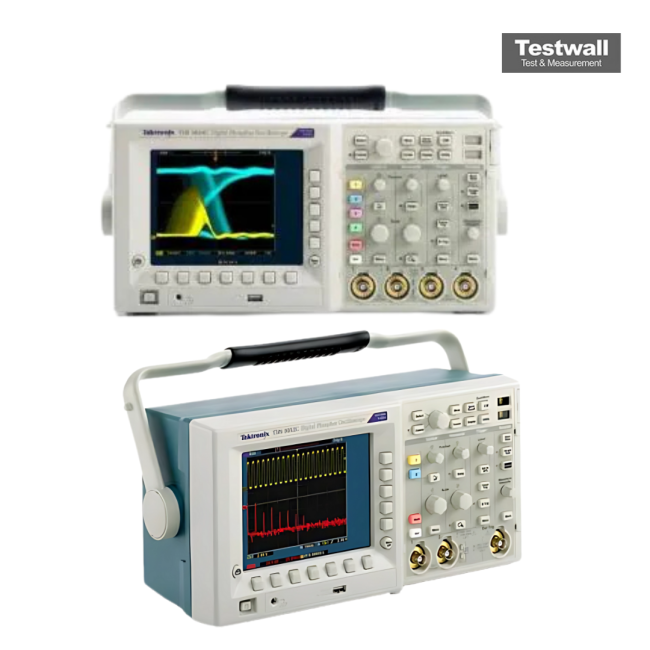

Tektronix TDS3014C
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 1.25 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Display | Color LCD, 640 x 480 resolution |
| Connectivity | USB, RS-232, GPIB (optional), Compact Flash |
| Power Requirements | 100–240 VAC, 50/60 Hz, 80 W maximum |
Tektronix TDS3014C Options:
- TDS3014C - Opt. A0 - North America Power Cord
- TDS3014C - Opt. A1 - Universal Euro Power Cord
- TDS3014C - Opt. A2 - United Kingdom Power Cord
- TDS3014C - Opt. A3 - Australia Power Cord
- TDS3014C - Opt. A5 - Switzerland Power Cord
- TDS3014C - Opt. A6 - Japan Power Cord
- TDS3014C - Opt. A10 - China Power Cord
- TDS3014C - Opt. A11 - India Power Cord
- TDS3014C - Opt. A99 - No Power Cord
- TDS3014C - Opt. L0 - English Manual
- TDS3014C - Opt. L1 - French Manual
- TDS3014C - Opt. L2 - Italian Manual
- TDS3014C - Opt. L3 - German Manual
- TDS3014C - Opt. L4 - Spanish Manual
- TDS3014C - Opt. L5 - Japanese Manual
- TDS3014C - Opt. L6 - Portuguese Manual
- TDS3014C - Opt. L7 - Simplified Chinese Manual
- TDS3014C - Opt. L8 - Traditional Chinese Manual
- TDS3014C - Opt. L9 - Korean Manual
- TDS3014C - Opt. L10 - Russian Manual
- TDS3014C - Opt. L99 - No Manual
- TDS3014C - Opt. CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- TDS3014C - Opt. C3 - Calibration Service – 3 years
- TDS3014C - Opt. C5 - Calibration Service – 5 years
- TDS3014C - Opt. D1 - Calibration Data Report
- TDS3014C - Opt. D3 - Calibration Data Report – 3 years (with Option C3)
- TDS3014C - Opt. D5 - Calibration Data Report – 5 years (with Option C5)
- TDS3014C - Opt. R5 - Repair Service – 5 year
| Model | TDS3014C |
|---|
The Tektronix TDS3014C is a 100 MHz, 4-channel digital oscilloscope with 1.25 GS/s sample rate and a 10k record length per channel, ideal for detailed waveform analysis. Its compact, 3.2 kg portable design includes a USB host port, FFT, 25 automatic measurements, and advanced trigger functions for efficient signal diagnostics.
Suitable for digital debugging, video service, power design, and education, it supports battery operation for up to 3 hours, offers application-specific modules, and integrates TekProbe® for versatile probe support.
Testwall can supply the used Tektronix TDS3014C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3014C.
