Tektronix

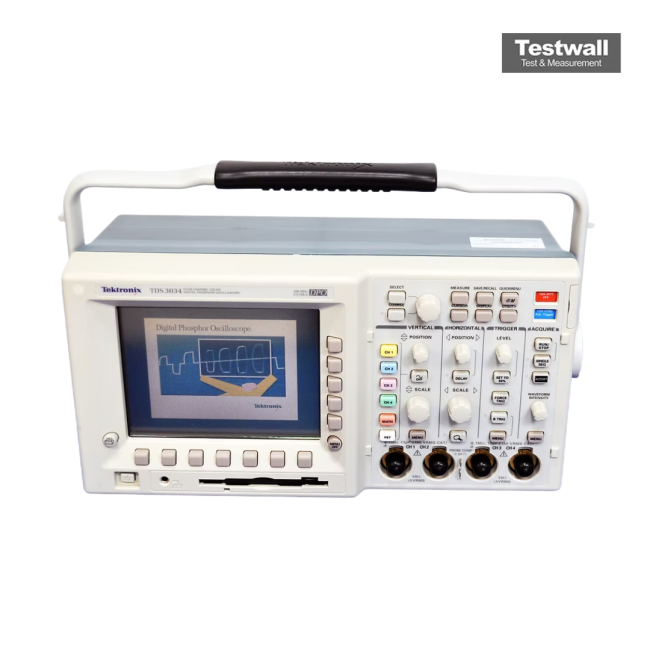

Tektronix TDS3034
Oscilloscope, 300 MHz, 4 Ch., 2.5 GS/s
300 MHz Bandwidth
4 Number of Channels
2.5 GS/s Sample Rate
10,000 points Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 10 s/div |
| Display | Color LCD, 640 x 480 resolution |
| Waveform Capture Rate | 3,600 waveforms per second |
| Connectivity | RS-232, Centronics, GPIB (optional), CompactFlash |
Tektronix TDS3034 Options:
- TDS3034 - A1 - Universal Euro 220 V, 50 Hz (161-0104-06)
- TDS3034 - A2 - United Kingdom 240 V, 50 Hz (161-0104-07)
- TDS3034 - A3 - Australia 240 V, 50 Hz (161-0104-05)
- TDS3034 - A5 - Switzerland 220 V, 50 Hz (161-0167-00)
- TDS3034 - A6 - Japan 3 to 2 wire adapter (013-0310-00)
- TDS3034 - L1 - French User Manual
- TDS3034 - L2 - Italian User Manual
- TDS3034 - L3 - German User Manual
- TDS3034 - L4 - Spanish User Manual
- TDS3034 - L5 - Japanese User Manual
- TDS3034 - L6 - Portuguese User Manual
- TDS3034 - L7 - Simplified Chinese User Manual
- TDS3034 - L8 - Traditional Chinese User Manual
- TDS3034 - L9 - Korean User Manual
- TDS3034 - LR - Russian User Manual (TDS 3000 products only)
| Model | TDS3034 |
|---|
RENT TEKTRONIX TDS3034 Oscilloscope (call for availability)
The Tektronix TDS3034 four channel Oscilloscope is far and away one of the most popular bench and design scopes in use today. The Tektronix TDS3034 Oscilloscope is compact, lightweight, versatile, yet powerful enough to make it the premium value on today's market.
Features and Specifications of the Tektronix TDS3034 Oscilloscope include:
- Frequency Range/ Bandwith: 300 MHz
- Max. Vertical Sensitivity: 10 V/div
- Min. Vertical Sensitivity: 1 mV/div
- Number of Channels: 4 CH
- Record Length: 10,000 pts
- Sample Rate: 2.5 GSa/s
, ,
