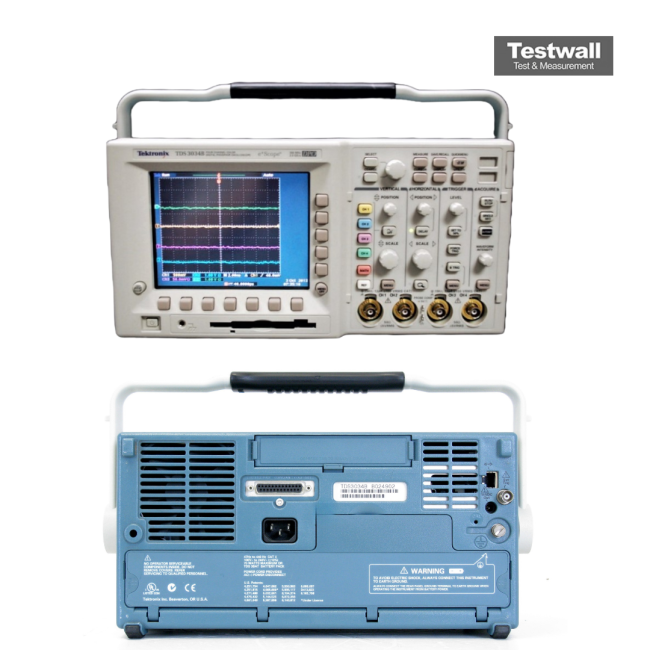

Tektronix TDS3034B
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Display | 5.7-inch color LCD |
| Input Impedance | 1 MΩ or 50 Ω |
| Connectivity | GPIB, RS-232, Centronics parallel port |
Tektronix TDS3034B Options:
Options available for the Tektronix TDS3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS3034B - TDS3GV - Communication module: GPIB, RS-232, VGA
- TDS3034B - TDS3EM - Ethernet communication module (TDS3000B)
- TDS3034B - TDS3TRG - Advanced trigger application module
- TDS3034B - TDS3FFT - FFT application module
- TDS3034B - TDS3LIM - Limit testing application module
- TDS3034B - TDS3VID - Extended video application module
- TDS3034B - TDS3SDI - 601 digital video application module
- TDS3034B - TDS3TMT - Telecom mask testing application module
- TDS3034B - TDS3AAM - Advanced analysis application module
- TDS3034B - TDS3BAT - Rechargeable lithium-ion battery pack
The Tektronix TDS3034B is a 4-channel Digital Phosphor Oscilloscope offering 300 MHz bandwidth and 2.5 GS/s real-time sampling for precise waveform analysis in demanding applications.
With advanced acquisition modes, a 10,000-point record length per channel, FFT analysis, and versatile PC integration, it supports signal diagnostics across electronics, telecom, and video systems.
Testwall can supply the used Tektronix TDS3034B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3034B.
