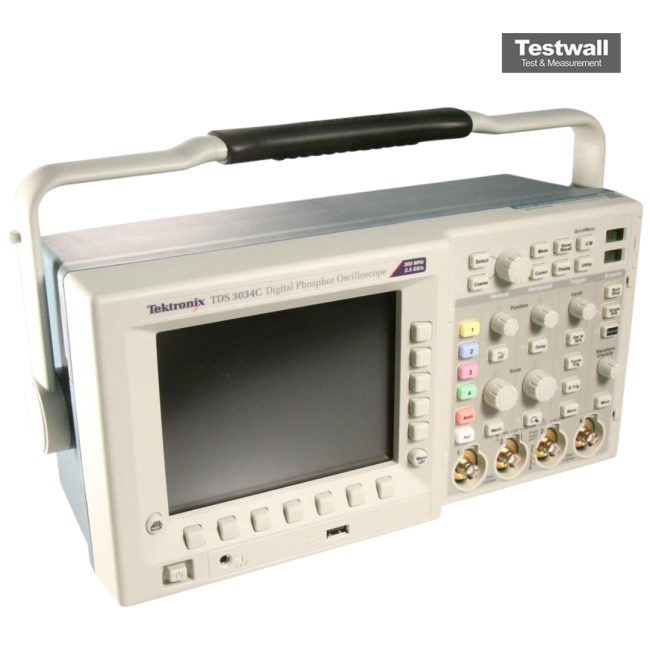

Tektronix TDS3034C 300 MHz 4 Channel Digital Phosphor Oscilloscope with TDS3BAT
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Rise Time | 1.2 ns |
| Time Base Range | 5 ns/div to 50 s/div |
| Display Type | Color Digital Phosphor Display, 640 x 480 resolution |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Battery | Includes TDS3BAT Rechargeable Battery Pack for portable operation |
Tektronix TDS3034C 300 MHz 4 Channel Digital Phosphor Oscilloscope with TDS3BAT Options:
- TDS3034C - Opt. A0 - North America Power Plug
- TDS3034C - Opt. A1 - Universal Euro Power Plug
- TDS3034C - Opt. A2 - United Kingdom Power Plug
- TDS3034C - Opt. A3 - Australia Power Plug
- TDS3034C - Opt. A5 - Switzerland Power Plug
- TDS3034C - Opt. A6 - Japan Power Plug
- TDS3034C - Opt. A10 - China Power Plug
- TDS3034C - Opt. A11 - India Power Plug
- TDS3034C - Opt. A99 - No Power Cord
- TDS3034C - Opt. L0 - English Manual
- TDS3034C - Opt. L1 - French Manual
- TDS3034C - Opt. L2 - Italian Manual
- TDS3034C - Opt. L3 - German Manual
- TDS3034C - Opt. L4 - Spanish Manual
- TDS3034C - Opt. L5 - Japanese Manual
- TDS3034C - Opt. L6 - Portuguese Manual
- TDS3034C - Opt. L7 - Simplified Chinese Manual
- TDS3034C - Opt. L8 - Traditional Chinese Manual
- TDS3034C - Opt. L9 - Korean Manual
- TDS3034C - Opt. L10 - Russian Manual
- TDS3034C - Opt. L99 - No Manual
- TDS3034C - Opt. CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- TDS3034C - Opt. C3 - Calibration Service – 3 years
- TDS3034C - Opt. C5 - Calibration Service – 5 years
- TDS3034C - Opt. D1 - Calibration Data Report
- TDS3034C - Opt. D3 - Calibration Data Report – 3 years (with Option C3)
- TDS3034C - Opt. D5 - Calibration Data Report – 5 years (with Option C5)
- TDS3034C - Opt. R5 - Repair Service – 5 year
| Model | TDS3034C |
|---|
The Tektronix TDS3034C is a 300 MHz, 4-channel digital phosphor oscilloscope offering up to 2.5 GS/s sampling per channel, a compact 5.9-inch depth, and a 3,600 wfms/s waveform capture rate. It supports 10k record length, 25 automatic measurements, and FFT standard for advanced analysis.
Ideal for digital design, telecom testing, video service, and education, it features USB ports, TekProbe support, and optional battery operation for up to 3 hours, ensuring versatile field or lab use.
Testwall can supply the used Tektronix TDS3034C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3034C.
