Tektronix TDS3052B
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 10 s/div |
| Display | 5.6-inch color TFT LCD |
| Trigger Types | Edge, Video, Pulse Width, Logic, Serial (optional), Rise/Fall Time |
| Connectivity/Interfaces | GPIB, RS-232, Centronics, CompactFlash card slot |
Tektronix TDS3052B Options:
- TDS3052B - TDS3AAM - Advanced Analysis Module – Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements
- TDS3052B - TDS3LIM - Limit Testing Module – Offers fast, accurate Go/No-Go verification that tested circuits are operating within intended parameters
- TDS3052B - TDS3TMT - Telecommunications Mask Testing Module – Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more
- TDS3052B - TDS3VID - Extended Video Module – Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode, HDTV format triggering graticules and more
- TDS3052B - TDS3SDI - 601 Serial Digital Video Module – Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode, HDTV format triggering and more
- TDS3052B - TDS3GV - Communication Module (optional, for floppy disk and additional connectivity)
- TDS3052B - TDSPCS1 - OpenChoice Software for instrument control, documentation and analysis
| Model | TDS3052B |
|---|

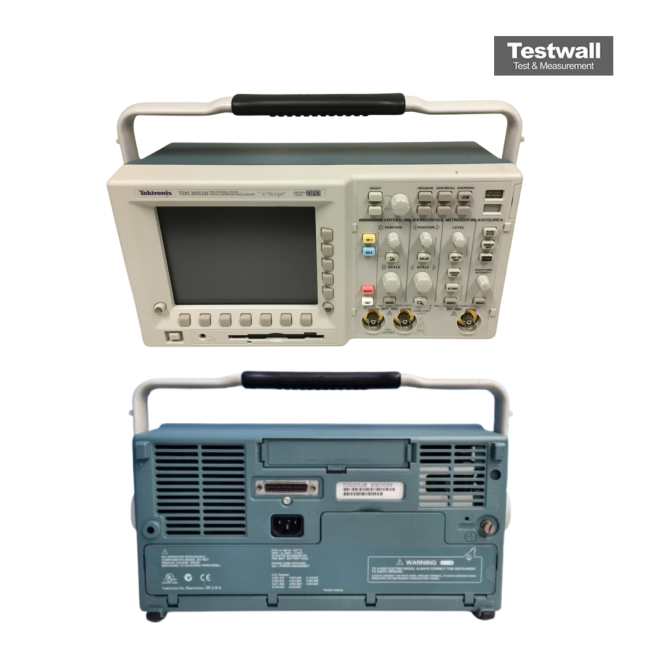

The Tektronix TDS3052B is a 500 MHz digital phosphor oscilloscope with two channels and 5 GS/s sampling rate, ideal for high-speed signal capture
It features 10,000 points per channel memory and a 9-bit vertical resolution on a full-VGA color display
Triggering options include edge, video, pulse width, and pattern
Equipped with modular expansion and interfaces like Ethernet, GPIB, USB, and optional battery pack, it supports OpenChoice, MATLAB, and LabVIEW for automation and analysis
It offers advanced acquisition and over 25 auto measurements
Testwall can supply the used Tektronix TDS3052B, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Tektronix TDS3052B
.
