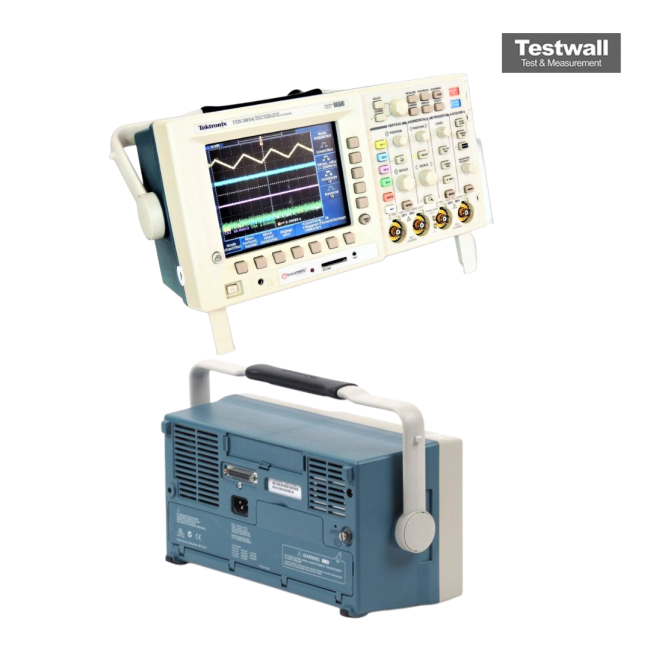

Tektronix TDS3054
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (single channel), 2.5 GS/s (two channels), 1.25 GS/s (four channels) |
| Record Length | 10,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 10 s/div |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Display | 5.7-inch color LCD display |
| Connectivity / Interfaces | RS-232, GPIB (optional), Centronics parallel port, CompactFlash card slot |
Tektronix TDS3054 Options:
- TDS3054 - A1 - Universal Euro 220 V, 50 Hz (161-0104-06)
- TDS3054 - A2 - United Kingdom 240 V, 50 Hz (161-0104-07)
- TDS3054 - A3 - Australia 240 V, 50 Hz (161-0104-05)
- TDS3054 - A5 - Switzerland 220 V, 50 Hz (161-0167-00)
- TDS3054 - A6 - Japan 3 to 2 wire adapter (013-0310-00)
- TDS3054 - L1 - French User Manual
- TDS3054 - L2 - Italian User Manual
- TDS3054 - L3 - German User Manual
- TDS3054 - L4 - Spanish User Manual
- TDS3054 - L5 - Japanese User Manual
- TDS3054 - L6 - Portuguese User Manual
- TDS3054 - L7 - Simplified Chinese User Manual
- TDS3054 - L8 - Traditional Chinese User Manual
- TDS3054 - L9 - Korean User Manual
- TDS3054 - LR - Russian User Manual (TDS 3000 products only)
| Model | TDS3054 |
|---|
The Tektronix TDS3054 is a 500 MHz, 4-channel digital oscilloscope featuring sample rates up to 5 GS/s, 9-bit vertical resolution, and a full VGA color LCD. It offers 21 automatic measurements, FFT analysis, advanced triggers, and support for various probes. Optional modules extend connectivity via RS-232, GPIB, LAN, and VGA ports.
Ideal for communications, digital and video design, and industrial electronics, the TDS3054 also supports mobile use with an optional battery pack and built-in floppy disk drive.
Testwall can supply the used Tektronix TDS3054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3054.
