Tektronix

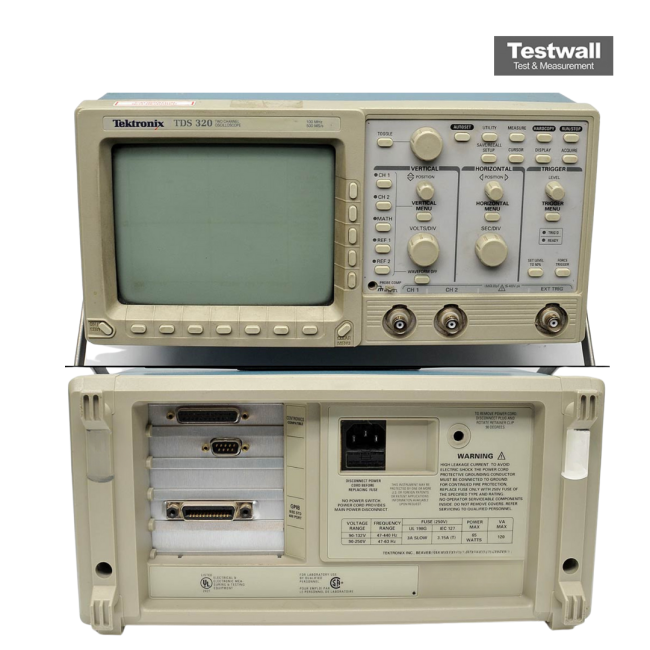

Tektronix TDS320
2 Channel 100MHz 500MS/s Digital Storage Oscilloscope
100 MHz Bandwidth
2 Number of Channels
250 MS/s (single channel), 500 MS/s (equivalent time) Sample Rate
1,000 points per channel Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 250 MS/s (single channel), 500 MS/s (equivalent time) |
| Record Length | 1,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | Liquid Crystal Display (LCD), backlit |
| Connectivity / Interface | RS-232, Centronics parallel port, GPIB optional |
Tektronix TDS320 Options:
- TDS320 - Opt. 14 - I/O Interface (includes GPIB, RS-232 interfaces, VGA output and Centronics-type parallel port, plus Programmer Manual)
- TDS320 - Opt. 3P - 120V Printer Pack; includes Opt. 14, Thermal Printer, 5 rolls paper (006-7560-00), Pouch, Printer Cable
- TDS320 - Opt. A1 - Universal Euro 220V, 50 Hz
- TDS320 - Opt. A2 - United Kingdom 240V, 50 Hz
- TDS320 - Opt. A3 - Australia 240V, 50 Hz
- TDS320 - Opt. A4 - North America 240V, 60 Hz
- TDS320 - Opt. A5 - Switzerland 220V, 50 Hz
| Model | TDS320 |
|---|
The Tektronix TDS320 is a dual-channel digital oscilloscope offering 200 MHz bandwidth and high-speed sampling, ideal for real-time single-shot event analysis in R&D, lab, and test environments.
It features two channels, advanced signal acquisition, and robust processing capabilities to meet diverse application requirements effectively.
Testwall can supply the used Tektronix TDS320, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS320.
