Tektronix TDS410A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Sample Rate | 100 MS/s per channel (200 MS/s on 2 channels) |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 5 ns/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Monochrome LCD with backlight |
| Connectivity / Interface | GPIB, RS-232, Centronics parallel port |
Tektronix TDS410A Options:
- TDS410A - Opt. XL - 120,000 Point Record Length; RS-232 and Centronics Hardcopy Interfaces; Extended Waveform Math: FFT; Integration, Differentiation; Front Cover and Accessories Pouch
- TDS410A - Opt. 1R - Rack Mount
- TDS410A - Opt. D1 - NIST, MIL-STD-45662A and ISO 9000 Calibration Data Report
- TDS410A - Opt. J2 - 2 year Post Warranty Repair
- TDS410A - Opt. J5 - 5 year Calibration Services. 5 years total
- TDS410A - Opt. A1 - Universal Euro 220 V, 50 Hz
- TDS410A - Opt. A2 - UK 240 V, 50 Hz
- TDS410A - Opt. A3 - Australian 240 V, 50 Hz
- TDS410A - Opt. A4 - North American 240 V, 60 Hz
- TDS410A - Opt. A5 - Switzerland 220 V, 50 Hz
- TDS410A - Opt. C3 - Three years of Calibration Services
- TDS410A - Opt. C5 - Five years of Calibration Services
- TDS410A - Opt. D3 - Test Data (requires Opt. C3)
- TDS410A - Opt. D5 - Test Data (requires Opt. C5)
- TDS410A - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS410A |
|---|

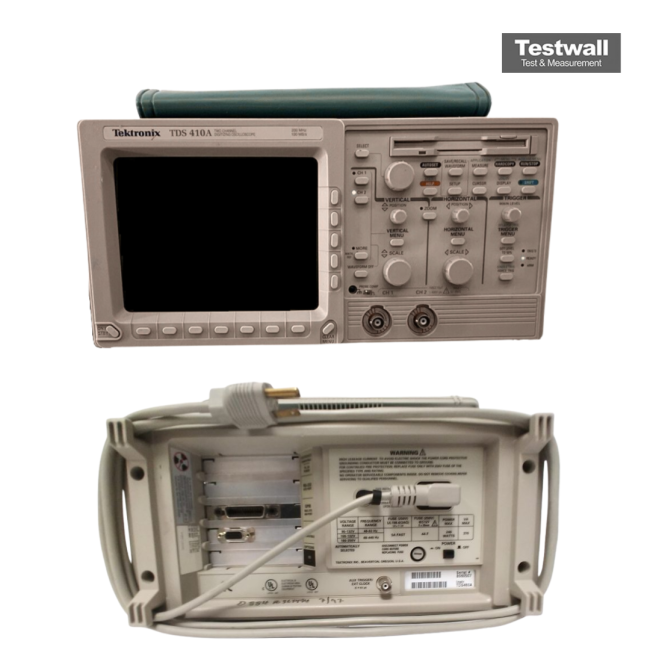

The Tektronix TDS410A is a 200 MHz, 2‑channel digitizing oscilloscope, featuring a maximum sampling rate of 100 MSa/s and up to 12‑bit vertical resolution in Hi‑Res mode. It includes 30 K records, 25 automatic measurements, RS‑232 and Centronics interfaces, and a 3.5‑inch DOS‑format floppy drive for easy data transfer. The intuitive TDS GUI supports fast operation with standard video trigger capabilities.
Ideal for applications in biophysical and biomedical research, power electronics, and audio system analysis, the TDS410A offers reliable waveform testing with glitch capture and pass/fail evaluation functions.
Testwall can supply the used Tektronix TDS410A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS410A.
