Tektronix TDS5054B
500 MHz 4Ch Digital Oscilloscope
500 MHz Bandwidth
4 Number of Channels
5 GS/s (on 2 channels), 2.5 GS/s (on 4 channels) Sample Rate
Up to 16 M points per channel Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (on 2 channels), 2.5 GS/s (on 4 channels) |
| Record Length | Up to 16 M points per channel |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color TFT LCD |
| Operating System | Windows XP Embedded |
| Connectivity | USB, GPIB, Ethernet (LAN), CompactFlash |
| Time Base Range | 200 ps/div to 200 s/div |
Tektronix TDS5054B Options:
- TDS5054B - Opt. 18 - Touch-screen interface
- TDS5054B - Opt. 3M - Increase record length to 16M samples max (1ch.)
- TDS5054B - Opt. 1P - Built-in thermal printer
- TDS5054B - Opt. FHD - Front panel removable hard drive (replaces FDD and internal HDD)
- TDS5054B - Opt. 1K - Oscilloscope cart
- TDS5054B - Opt. 1R - Rackmount kit
- TDS5054B - Opt. SM - Communication mask testing
- TDS5054B - Opt. PS1 - Power Bundle that includes TCP202 DC Coupled Current Probe, P5205 High Voltage Differential Probe, TDSPWR3 Power Measurement Software, and Power Deskew Fixture
- TDS5054B - Opt. CP2 - TDSCPM2 - ANSI/ITU telecom pulse compliance testing software (requires Opt. SM)
- TDS5054B - Opt. DVD - TDSDVD - Optical storage analysis software
- TDS5054B - Opt. ET3 - TDSET3 - Ethernet compliance test software
- TDS5054B - Opt. J2 - TDSDDM2 - Disk drive measurements software
- TDS5054B - Opt. JA3 - TDSJIT3 v2.0 Advanced - Jitter and timing analysis software
- TDS5054B - Opt. JE3 - TDSJIT v2.0 Essentials - Jitter and timing analysis software
- TDS5054B - Opt. PW3 - TDSPWR3 - Power measurements software
- TDS5054B - Opt. USB - USB 2.0 Compliance test software only
- TDS5054B - Opt. A0 - Power plug: North America
- TDS5054B - Opt. A1 - Power plug: Universal Euro
- TDS5054B - Opt. A2 - Power plug: United Kingdom
- TDS5054B - Opt. A3 - Power plug: Australia
- TDS5054B - Opt. A4 - Power plug: 240 V North America
- TDS5054B - Opt. A5 - Power plug: Switzerland
- TDS5054B - Opt. A6 - Power plug: Japan
- TDS5054B - Opt. A10 - Power plug: China
- TDS5054B - Opt. A99 - No power cord or AC adapter
- TDS5054B - Opt. L0 - English manual
- TDS5054B - Opt. L1 - French manual
- TDS5054B - Opt. L3 - German manual
- TDS5054B - Opt. L5 - Japanese manual
- TDS5054B - Opt. L7 - Simple Chinese manual
- TDS5054B - Opt. L8 - Traditional Chinese manual
- TDS5054B - Opt. L9 - Korean manual
- TDS5054B - Opt. L10 - Russian manual
- TDS5054B - Opt. C3 - Calibration Service 3 Years
- TDS5054B - Opt. C5 - Calibration Service 5 Years
- TDS5054B - Opt. D1 - Calibration Data Report
- TDS5054B - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- TDS5054B - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- TDS5054B - Opt. R3 - Repair Service 3 Years (including warranty)
- TDS5054B - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | TDS5054B |
|---|

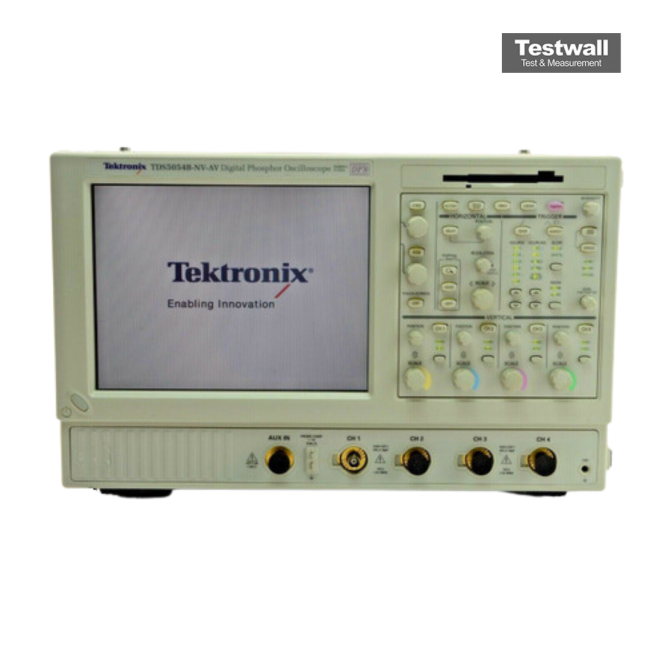

The Tektronix TDS5054B is a 500 MHz, 4-channel digital oscilloscope offering up to 5 GS/s sample rate, suitable for capturing and analyzing complex signal behaviors with high fidelity and precision.
Ideal for troubleshooting, production testing, and circuit design, it provides advanced waveform analysis, revealing frequency, amplitude, and rise time characteristics accurately.
Testwall can supply the used Tektronix TDS5054B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS5054B.
