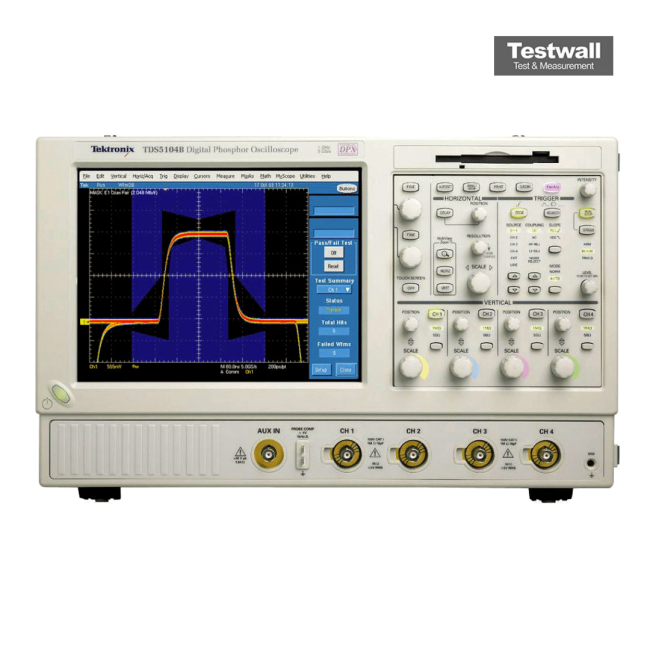

Tektronix TDS5104B
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (on all channels simultaneously) |
| Record Length | Up to 16 M points (optional 32 M points) |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Rise Time | 350 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color TFT LCD |
| Operating System | Windows XP Embedded |
| Connectivity | USB, GPIB, Ethernet (LAN), CompactFlash |
Tektronix TDS5104B Options:
- TDS5104B - Opt. 1R - Rackmount kit
- TDS5104B - Opt. SM - Communication mask testing
- TDS5104B - Opt. VNM - CAN bus decode requires ATM1 trigger module
- TDS5104B - Opt. PS1 - Power bundle that includes TCP202 DC-coupled current probe, P5205 high-voltage differential probe, TDSPWR3 power measurement software, and power deskew fixture
- TDS5104B - Opt. CP2 - TDSCPM2 – ANSI/ITU telecom pulse compliance testing software (Requires Option SM)
- TDS5104B - Opt. ET3 - TDSET3 – Ethernet compliance test software
- TDS5104B - Opt. JA3 - TDSJIT3 v2.0 Advanced – Jitter and timing analysis software
- TDS5104B - Opt. JE3 - TDSJIT3 v2.0 Essentials – Jitter and timing analysis software
- TDS5104B - Opt. PW3 - TDSPWR3 – Power measurement software
- TDS5104B - Opt. USB - USB 2.0 compliance test software only
- TDS5104B - Opt. A0 - North America power plug
- TDS5104B - Opt. A1 - Universal Euro power plug
- TDS5104B - Opt. A2 - United Kingdom power plug
- TDS5104B - Opt. A3 - Australia power plug
- TDS5104B - Opt. A4 - 240 V North America power plug
- TDS5104B - Opt. A5 - Switzerland power plug
- TDS5104B - Opt. A6 - Japan power plug
- TDS5104B - Opt. A10 - China power plug
- TDS5104B - Opt. A99 - No power cord or AC adapter
- TDS5104B - Opt. L0 - English Manual
- TDS5104B - Opt. L1 - French Manual
- TDS5104B - Opt. L3 - German Manual
- TDS5104B - Opt. L5 - Japanese Manual
- TDS5104B - Opt. L7 - Simple Chinese Manual
- TDS5104B - Opt. L8 - Traditional Chinese Manual
- TDS5104B - Opt. L9 - Korean Manual
- TDS5104B - Opt. L10 - Russian Manual
- TDS5104B - Opt. C3 - Calibration Service 3 Years
- TDS5104B - Opt. C5 - Calibration Service 5 Years
- TDS5104B - Opt. D1 - Calibration Data Report
- TDS5104B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- TDS5104B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- TDS5104B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- TDS5104B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- TDS5104B - Opt. R3 - Repair Service 3 Years (including warranty)
- TDS5104B - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | TDS5104B |
|---|
The Tektronix TDS5104B Digital Phosphor Oscilloscope features 1 GHz bandwidth, 4 channels, 5 GS/s sampling, and up to 16M record length. With advanced trigger options and DPX® acquisition technology, it captures over 100,000 waveforms/s for high-performance signal diagnostics.
Equipped with communication mask and pass/fail testing, MyScope custom controls, a 10.4" touchscreen display, and remote access, the TDS5104B is built for accurate analysis of complex signals.
Testwall can supply the used Tektronix TDS5104B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS5104B.
