Tektronix TDS540C
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 1 GS/s (single channel), 500 MS/s (all channels) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity / Interface | GPIB, RS-232, Centronics (parallel) ports |
Tektronix TDS540C Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS540C - 05 - Video trigger
- TDS540C - 13 - RS-232 and Centronics interfaces
- TDS540C - 1F - Built-in floppy disk drive
- TDS540C - 1M - Long record length
- TDS540C - 2F - Advanced DSP math
- TDS540C - 1R - Rack mount configuration
- TDS540C - 1K - Instrument cart

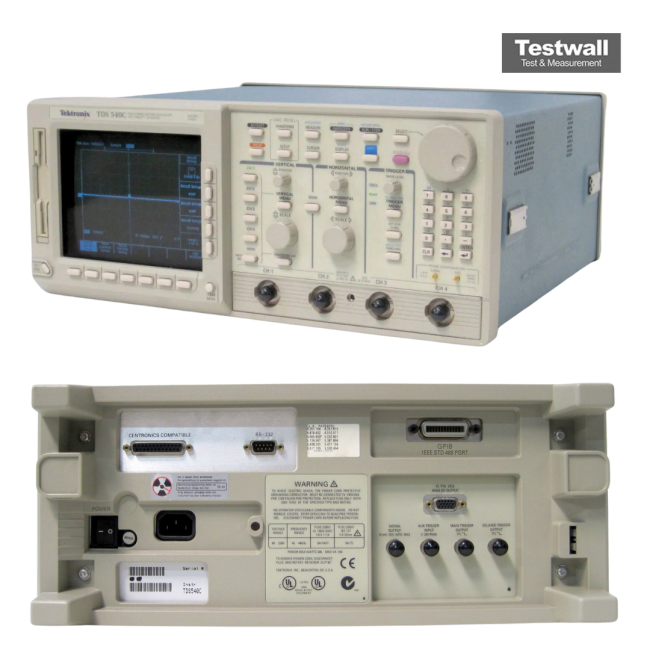

The Tektronix TDS 540C is a four-channel digitizing oscilloscope offering 2 GS/s sampling, 1 GHz bandwidth, and InstaVu acquisition for over 400,000 waveforms/sec. It features 1% vertical accuracy, 8-bit resolution (expandable to 13 bits), advanced triggering, FFT analysis, and 29 auto measurements. With GPIB programmability and storage options, it's ideal for high-speed signal diagnostics and design validation.
Engineered for communication design and R&D, the TDS 540C includes waveform histograms, limit testing, SONET/SDH and Fiber Channel analysis, and up to 8M record length. It’s suited for precise debugging and measurement tasks.
Testwall can supply the used Tektronix TDS 540C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS 540C.
